9455-9113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

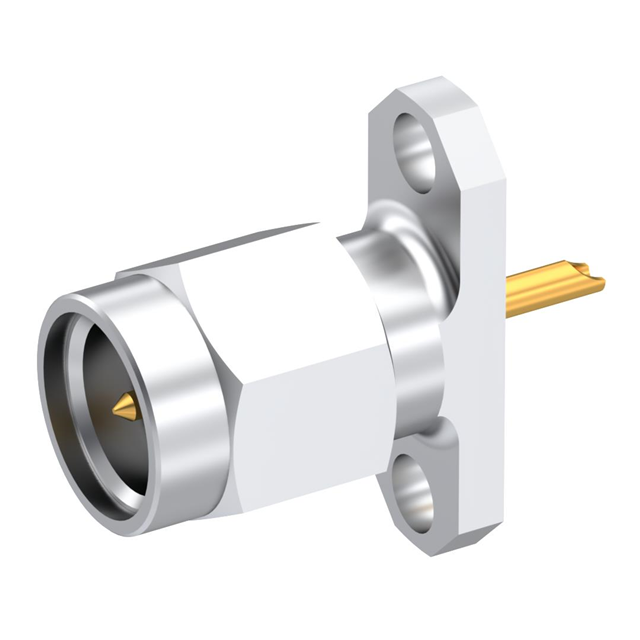

SMA / STRAIGHT PLUG RECEPTACLE M
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Plating | Mating Cycles | Dielectric Material | Mounting Type | Frequency - Max [Max] | Fastening Type | Impedance | Contact Termination | Housing Color | Center Contact Material | Number of Ports | Connector Style | Shield Termination | Connector Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Stainless Steel | Gold | 500 | Polytetrafluoroethylene (PTFE) | Panel Mount | 18 GHz | Threaded | 50 Ohms | Solder Cup | Silver | Beryllium Copper | 1 | SMA | Solder | Plug Male Pin | Flange |
