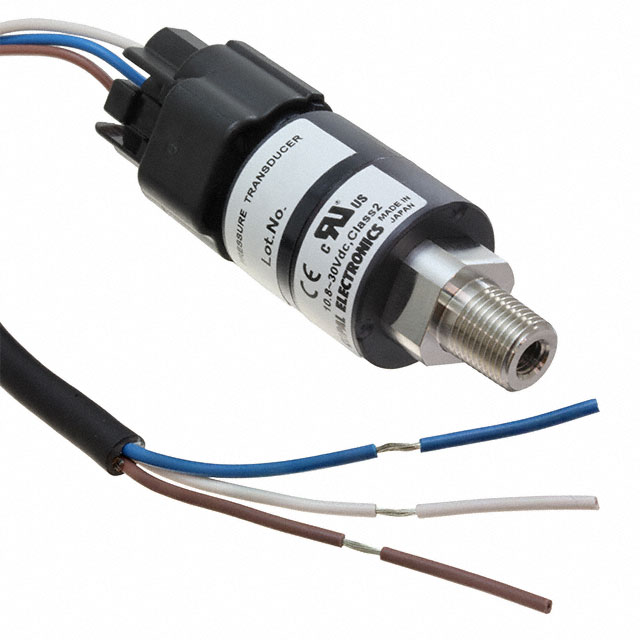

PA-750 Series

Manufacturer: Nidec Components Corporation

Catalog

PRESSURE TRANSDUCERS WITH AMP.

Part	Termination Style	Operating Pressure	Operating Pressure	Pressure Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Port Size	Package / Case	Output [Min]	Output [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Applications	Port Style	Output Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Min]	Operating Pressure [Max]	Maximum Pressure	Maximum Pressure
Nidec Components Corporation PA-750-203G-R2	Cable	20000 kPa	2900.75 PSI	Gauge	30 VDC	10.8 VDC	Female - M5	Cylinder	1 V	5 V	-20 C	80 C	Temperature Compensated	Industrial Automation	Threaded	Analog Voltage
Nidec Components Corporation PA-750-102G-R2-1	Cable	100 kPa	14.5 PSI	Gauge	30 VDC	10.8 VDC	Female - M5	Cylinder	1 V	5 V	-20 C	80 C	Temperature Compensated	Industrial Automation	Threaded	Analog Voltage	200 kPa	29.01 PSI
Nidec Components Corporation PA-750-102A-R1	Cable	100 kPa	14.5 PSI		30 VDC	10.8 VDC	Female - M5	Cylinder	1 V	5 V	-20 C	80 C	Temperature Compensated	Industrial Automation	Threaded	Analog Voltage	200 kPa	29.01 PSI
Nidec Components Corporation PA-750-102R-R1-1	Cable			Compound	30 VDC	10.8 VDC	Female - M5	Cylinder	1 V	5 V	-20 C	80 C	Temperature Compensated	Industrial Automation	Threaded	Analog Voltage	200 kPa	29.01 PSI	100 kPa	-1 bar	-14.5 PSI	14.5 PSI
Nidec Components Corporation PA-750-353G-R2-1	Cable	3500 kPa	507.63 PSI	Gauge	30 VDC	10.8 VDC	Female - M5	Cylinder	1 V	5 V	-20 C	80 C	Temperature Compensated	Industrial Automation	Threaded	Analog Voltage	5000 kPa	725.19 PSI

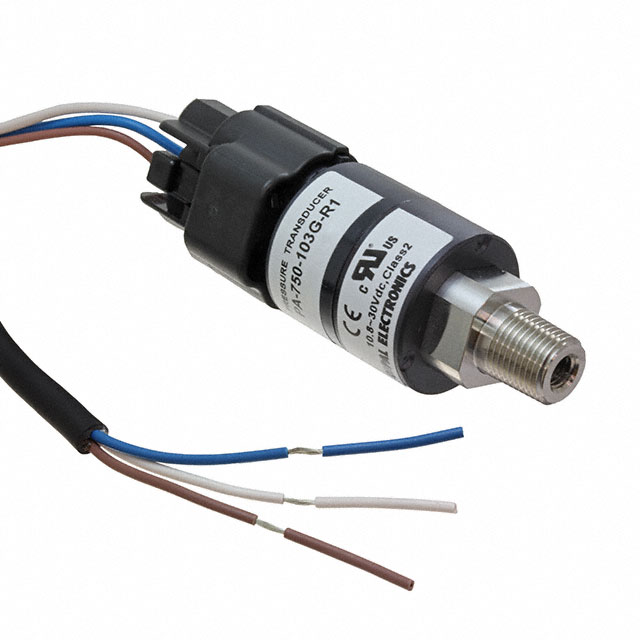

Nidec Components Corporation PA-750-352G-R2	Cable	350 kPa	50.76 PSI	Gauge	30 VDC	10.8 VDC	Female - M5	Cylinder	1 V	5 V	-20 C	80 C	Temperature Compensated	Industrial Automation	Threaded	Analog Voltage							700 kPa	101.53 PSI
Nidec Components Corporation PA-750-102A-R1-1	Cable	100 kPa	14.5 PSI		30 VDC	10.8 VDC	Female - M5	Cylinder	1 V	5 V	-20 C	80 C	Temperature Compensated	Industrial Automation	Threaded	Analog Voltage	200 kPa	29.01 PSI
Nidec Components Corporation PA-750-302R-R2	Cable			Compound	30 VDC	10.8 VDC	Female - M5	Cylinder	1 V	5 V	-20 C	80 C	Temperature Compensated	Industrial Automation	Threaded	Analog Voltage			3 bar	-1 bar	-14.5 PSI	43.51 PSI	600 kPa	87.02 PSI
Nidec Components Corporation PA-750-352G-R1	Cable	350 kPa	50.76 PSI	Gauge	30 VDC	10.8 VDC	Female - M5	Cylinder	1 V	5 V	-20 C	80 C	Temperature Compensated	Industrial Automation	Threaded	Analog Voltage							700 kPa	101.53 PSI
Nidec Components Corporation PA-750-102A-R2-1	Cable	100 kPa	14.5 PSI		30 VDC	10.8 VDC	Female - M5	Cylinder	1 V	5 V	-20 C	80 C	Temperature Compensated	Industrial Automation	Threaded	Analog Voltage	200 kPa	29.01 PSI
