ANT1204 Series

Catalog

RF ANT 433MHZ CHIP SOLDER SMD

Part	Frequency (Center/Band)	Mounting Type	Return Loss	Termination	Gain	Height (Max)	Frequency Range (Max)	Frequency Range (Min)	Antenna Type	Power - Max	Number of Bands	Frequency Group Maximum (UHF)	Frequency Group	Frequency Group Minimum (UHF)	Applications	Frequency (Band)	Frequency (Center)	Frequency Range (Band 1) Minimum	Frequency Range (Band 2) Maximum	Frequency Range (Band 2) Minimum	Frequency Range (Band 1) Maximum	VSWR	RF Family/Standard

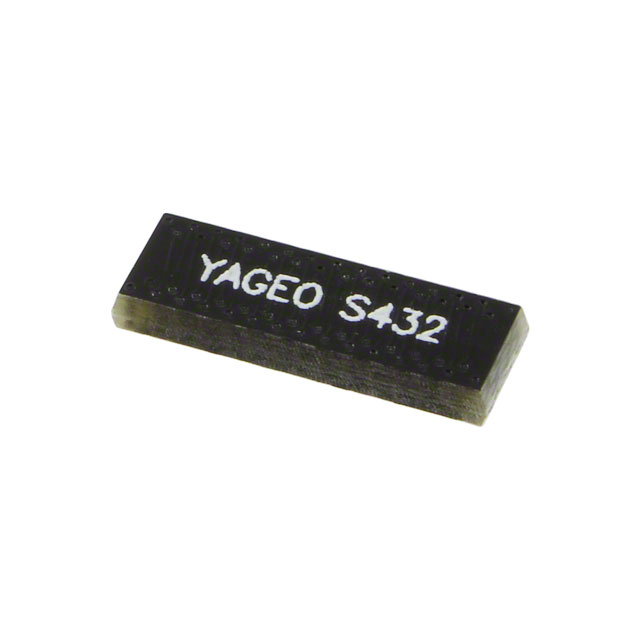

Pulse Electronics ANT1204F002R0433A	433 MHz	Surface Mount	-6.5 dB	Solder	0.79 dBi	0.063 in	447 MHz	419 MHz	Chip	1 VA	1	1 GHz	UHF	300 MHz

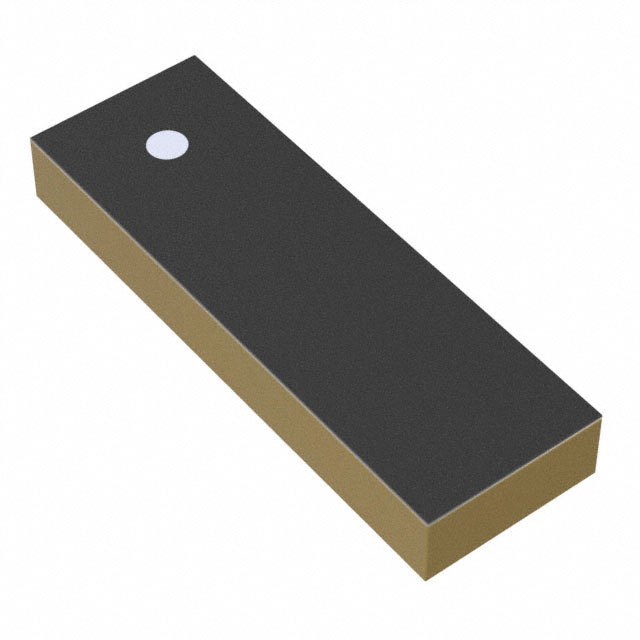

Pulse Electronics ANT1204F007R0870A	870 MHz	Surface Mount	10 dB	Solder	1.67 dBi	0.063 in			Chip	1 VA	1	1 GHz	UHF	300 MHz	General Purpose

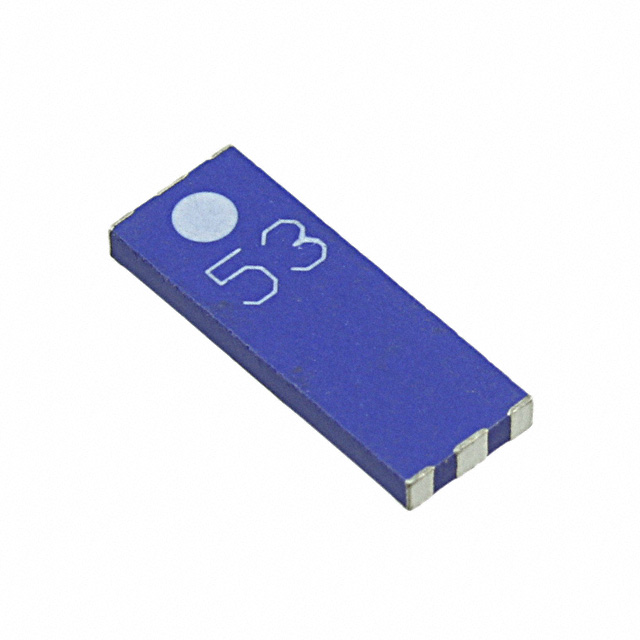

Pulse Electronics ANT1204LL00R0918A		Surface Mount	-10 dB	Solder	-1.6 dBi 1.08 dBi	0.047 in			Chip	2 VA	2	1 GHz 2 GHz	UHF	1 GHz 300 MHz		1.8 GHz	900 MHz	890 MHz	1.81 GHz	1.79 GHz	910 MHz	3

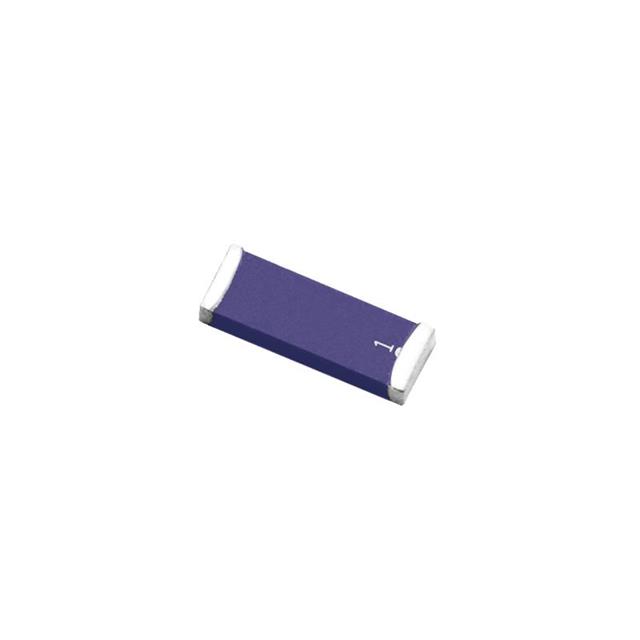

Pulse Electronics ANT1204LL20R0315A	315 MHz	Surface Mount		Solder		0.059 in	400 MHz	300 MHz	Chip	1 VA	1	1 GHz	UHF	300 MHz	ISM								General ISM
Pulse Electronics ANT1204LL04RGNSSA	1.58 GHz	Connector Mount		Solder	2.32 dBi	0.043 in	1.61 GHz	1550 MHz	Chip	1 VA	1	2 GHz	UHF	1 GHz	BEIDOU GLONASS GNSS GPS								Navigation
Pulse Electronics ANT1204LL08R0870A	870 MHz	Surface Mount	-10 dB	Solder	1.51 dBi	0.063 in			Chip	1 VA	1	1 GHz	UHF	300 MHz								1.92
Pulse Electronics ANT1204F005R0915A	915 MHz	Surface Mount	10 dB	Solder	1.59 dBi	0.063 in			Chip	1 VA	1	1 GHz	UHF	300 MHz	General Purpose
