228179 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

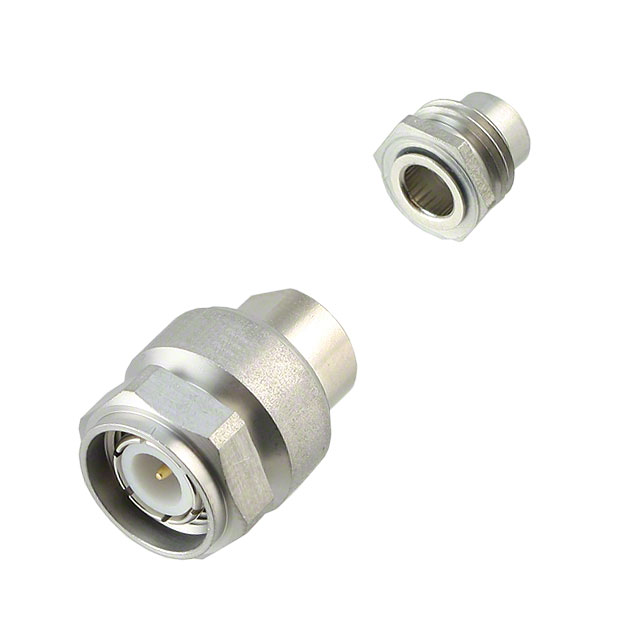

CONN TNC PLUG STR 50 OHM
| Part | Mounting Type | Shield Termination | Frequency - Max [Max] | Dielectric Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Connector Style | Mating Cycles | Includes | Impedance | Number of Ports | Housing Color | Center Contact Plating | Body Finish | Ingress Protection | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Crimp | 15 GHz | Polytetrafluoroethylene (PTFE) | 335 V | -65 ░C | 105 ░C | Male Pin Plug | TNC | 500 | 1 Adapter Assembly 1 Connector | 50 Ohms | 1 | |||||
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Crimp | 15 GHz | Polytetrafluoroethylene (PTFE) | 335 V | -65 ░C | 105 ░C | Male Pin Plug | TNC | 500 | 1 Adapter Assembly 1 Connector | 50 Ohms | 1 | Silver | Gold | Nickel | Weatherproof | Brass |
