633-M62 Series
Manufacturer: EDAC Inc.
Beta
⌘K

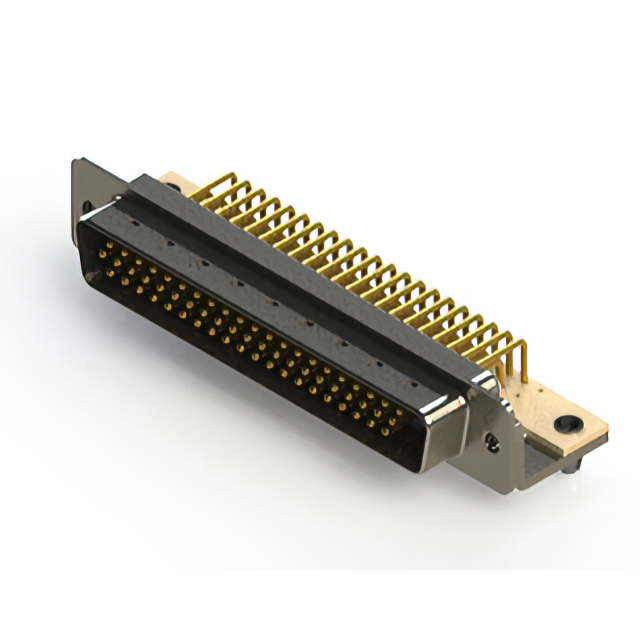

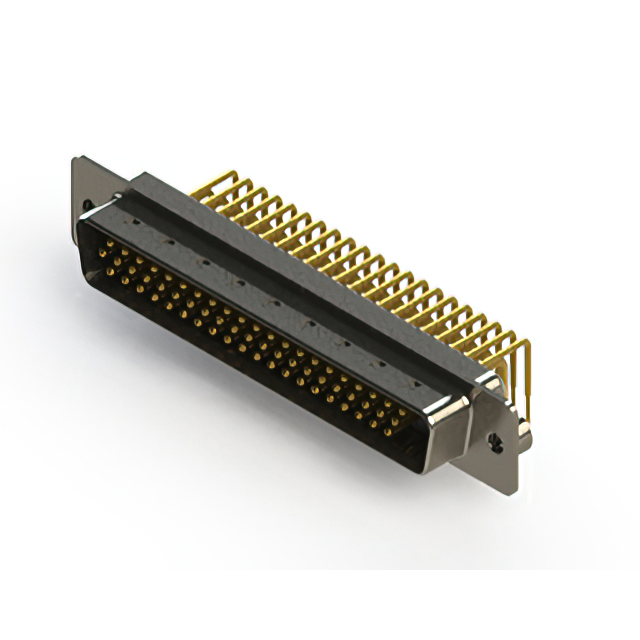

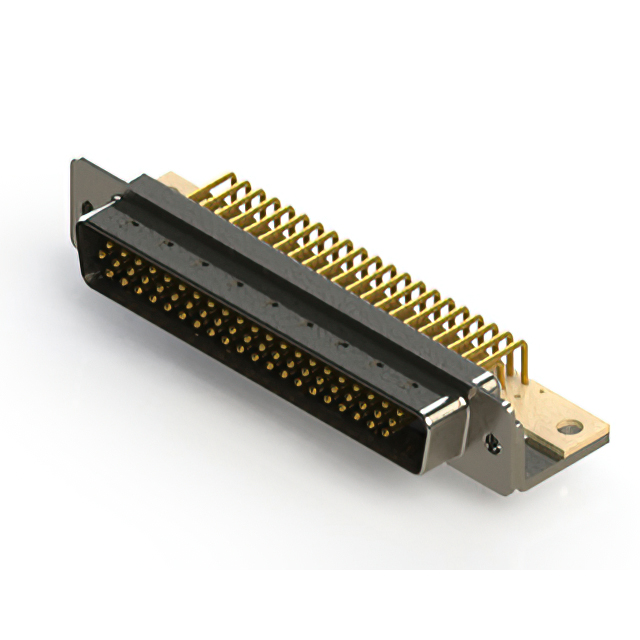

633M SERIES RIGHT ANGLE D-SUB PL
| Part | Contact Material | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Number of Positions | Termination | Connector Style | Mounting Type | Flange Feature | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout | Number of Rows [custom] | Current Rating (Amps) | Backset Spacing | Backset Spacing | Contact Finish | Connector Type | Contact Type | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | White | -55 C | 125 °C | Grounding Indents Shielded | 0.38 µm | 15 µin | Nickel Plated Steel | 62 | Solder | D-Sub High Density | Board Edge Right Angle Through Hole | Board Side (4-40) | UL94 V-0 | C DC | 4 | 3 | 5 A | 8.89 mm | 0.35 in | Gold | Plug Male Pins | Signal | ||
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | Black | -55 C | 125 °C | Board Lock Grounding Indents Shielded | Nickel Plated Steel | 62 | Solder | D-Sub | Board Edge Right Angle Through Hole | Housing/Shell | UL94 V-0 | C DC | 4 | 3 | 5 A | 8.89 mm | 0.35 in | Gold | Plug Male Pins | Signal | 4-40 | Flash | ||
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | White | -55 C | 125 °C | Grounding Indents Shielded | 0.38 µm | 15 µin | 62 | Solder | D-Sub High Density | Board Edge Right Angle Through Hole | Housing/Shell | UL94 V-0 | C DC | 4 | 3 | 5 A | 8.89 mm | 0.35 in | Gold | Plug Male Pins | Signal | 4-40 | ||
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | White | -55 C | 125 °C | Grounding Indents Shielded | 62 | Solder | D-Sub High Density | Board Edge Right Angle Through Hole | Housing/Shell | UL94 V-0 | C DC | 4 | 3 | 5 A | 8.89 mm | 0.35 in | Gold | Plug Male Pins | Signal | 4-40 | Flash | |||
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | Black | -55 C | 125 °C | Grounding Indents Shielded | 62 | Solder | D-Sub High Density | Board Edge Right Angle Through Hole | 4-40 | UL94 V-0 | C DC | 4 | 3 | 5 A | 8.89 mm | 0.35 in | Gold | Plug Male Pins | Signal | Flash | ||||
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | Black | -55 C | 125 °C | Grounding Indents Shielded | 0.76 Ám | 30 Áin | Nickel Plated Steel | 62 | Solder | D-Sub High Density | Board Edge Right Angle Through Hole | Housing/Shell | UL94 V-0 | C DC | 4 | 3 | 5 A | 8.89 mm | 0.35 in | Gold | Plug Male Pins | Signal | 4-40 | |
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | White | -55 C | 125 °C | Grounding Indents Shielded | 0.76 Ám | 30 Áin | Nickel Plated Steel | 62 | Solder | D-Sub High Density | Board Edge Right Angle Through Hole | Housing/Shell | UL94 V-0 | C DC | 4 | 3 | 5 A | 8.89 mm | 0.35 in | Gold | Plug Male Pins | Signal | 4-40 | |
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | Black | -55 C | 125 °C | Board Lock Grounding Indents Shielded | 0.38 µm | 15 µin | 62 | Solder | D-Sub | Board Edge Right Angle Through Hole | Housing/Shell | UL94 V-0 | C DC | 4 | 3 | 5 A | 8.89 mm | 0.35 in | Gold | Plug Male Pins | Signal | 4-40 | ||
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | White | -55 C | 125 °C | Grounding Indents Shielded | 0.76 Ám | 30 Áin | Nickel Plated Steel | 62 | Solder | D-Sub High Density | Board Edge Right Angle Through Hole | Housing/Shell | UL94 V-0 | C DC | 4 | 3 | 5 A | 8.89 mm | 0.35 in | Gold | Plug Male Pins | Signal | 4-40 | |
 EDAC Inc. | Copper Alloy | Polyamide (PA6T) Nylon 6T | White | -55 C | 125 °C | Grounding Indents Shielded | Nickel Plated Steel | 62 | Solder | D-Sub High Density | Board Edge Right Angle Through Hole | 4-40 | UL94 V-0 | C DC | 4 | 3 | 5 A | 8.89 mm | 0.35 in | Gold | Plug Male Pins | Signal | Flash |
