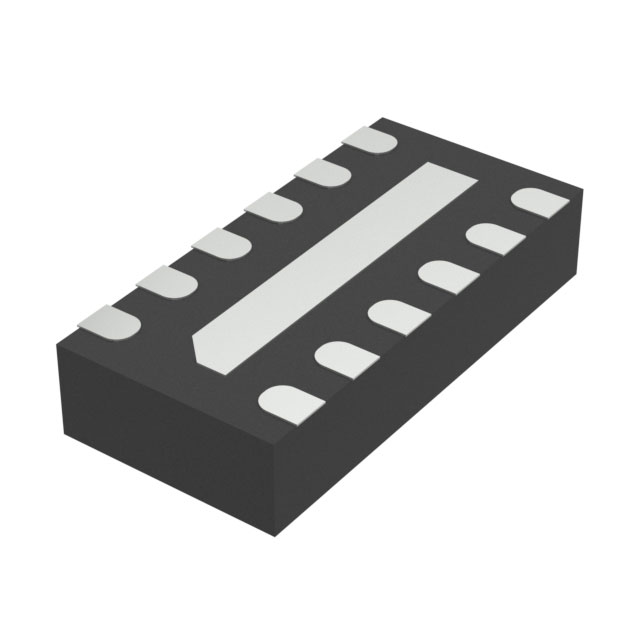

PEMI6 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

FILTER RC(PI) 65 OHM/21PF SMD

Part	Technology	Height [z]	Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Type	Filter Order	Number of Channels [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Resistance - Channel (Ohms)	Mounting Type	Attenuation Value	Package / Case	Values
Freescale Semiconductor - NXP PEMI6QFN/LR,132	RC (Pi)	0.02 in	0.5 mm	85 °C	-40 °C	LAN PCS WAN	Low Pass	2nd	6	1.2 mm	2.5 mm	0.047 in	0.098 "	65 Ohms	Surface Mount	21 dB	12-XFDFN	21 pF 65 Ohms
Freescale Semiconductor - NXP PEMI6QFN/LM,132	RC (Pi)	0.02 in	0.5 mm	85 °C	-40 °C	LAN PCS WAN	Low Pass	2nd	6	1.2 mm	2.5 mm	0.047 in	0.098 "	65 Ohms	Surface Mount	17 dB	12-XFDFN	16 pF 65 Ohms
Freescale Semiconductor - NXP PEMI6QFN/RM,132	RC (Pi)	0.02 in	0.5 mm	85 °C	-40 °C	LAN PCS WAN	Low Pass	2nd	6	1.2 mm	2.5 mm	0.047 in	0.098 "	100 Ohms	Surface Mount	21 dB	12-XFDFN	16 pF 100 Ohms
Freescale Semiconductor - NXP PEMI6QFN/LG,132	RC (Pi)	0.02 in	0.5 mm	85 °C	-40 °C	LAN PCS WAN	Low Pass	2nd	6	1.2 mm	2.5 mm	0.047 in	0.098 "	65 Ohms	Surface Mount	13 dB	12-XFDFN	11 pF 65 Ohms
Freescale Semiconductor - NXP PEMI6QFN/RE,132	RC (Pi)	0.02 in	0.5 mm	85 °C	-40 °C	LAN PCS WAN	Low Pass	2nd	6	1.2 mm	2.5 mm	0.047 in	0.098 "	100 Ohms	Surface Mount	13 dB	12-XFDFN	8.5 pF 100 Ohms
Freescale Semiconductor - NXP PEMI6QFN/CE,132	RC (Pi)	0.02 in	0.5 mm	85 °C	-40 °C	LAN PCS WAN	Low Pass	2nd	6	1.2 mm	2.5 mm	0.047 in	0.098 "	20 Ohms	Surface Mount	7 dB	12-XFDFN	8.5 pF 20 Ohms
Freescale Semiconductor - NXP PEMI6QFN/CG,132	RC (Pi)	0.02 in	0.5 mm	85 °C	-40 °C	LAN PCS WAN	Low Pass	2nd	6	1.2 mm	2.5 mm	0.047 in	0.098 "	20 Ohms	Surface Mount	9 dB	12-XFDFN	11 pF 20 Ohms
Freescale Semiconductor - NXP PEMI6QFN/WT,132	RC (Pi)	0.02 in	0.5 mm	85 °C	-40 °C	LAN PCS WAN	Low Pass	2nd	6	1.2 mm	2.5 mm	0.047 in	0.098 "	200 Ohms	Surface Mount	32 dB	12-XFDFN	23 pF 200 Ohms
Freescale Semiconductor - NXP PEMI6QFN/HT,132	RC (Pi)	0.02 in	0.5 mm	85 °C	-40 °C	LAN PCS WAN	Low Pass	2nd	6	1.2 mm	2.5 mm	0.047 in	0.098 "	45 Ohms	Surface Mount	20 dB	12-XFDFN	23 pF 45 Ohms
Freescale Semiconductor - NXP PEMI6QFN/RT,132	RC (Pi)	0.02 in	0.5 mm	85 °C	-40 °C	LAN PCS WAN	Low Pass	2nd	6	1.2 mm	2.5 mm	0.047 in	0.098 "	100 Ohms	Surface Mount	27 dB	12-XFDFN	23 pF 100 Ohms
