LCCN Series
Manufacturer: Panduit Corp
Beta
⌘K
TERMINALS COPPER COMP LUG, 2 HOLE, 350 KCMIL, NARR
| Part | Termination | Stud/Tab Size | Width - Outer Edges | Width - Outer Edges | Insulation | Tab Thickness | Tab Thickness | Terminal Style | Mounting Type | Terminal Type | Length - Overall [x] | Length - Overall [x] | Color | Wire Gauge | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Contact Finish | Contact Material | Length - Overall | Length - Overall | Wire Gauge | Width - Outer Edges [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Barrel Crimp | 0.5 Stud | 0.88 " | 22.35 mm | Non-Insulated | 0.21 in | 5.33 mm | Two Stud Holes | Free Hanging (In-Line) | Lug Grounding | 5.77 in | 146.56 mm | Red | 350 MCM (kcmil) | ||||||||||||

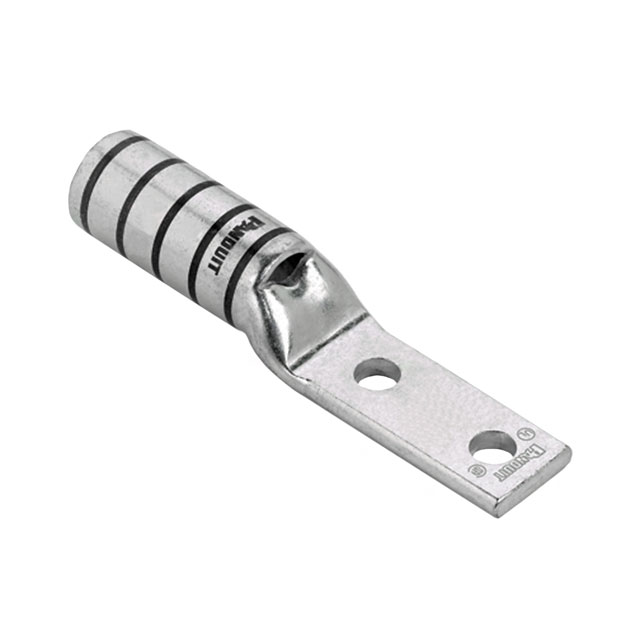

 Panduit Corp | Barrel Crimp | 0.375 Stud | 33.02 mm | Non-Insulated | 0.28 in | 7.11 mm | Two Stud Holes | Free Hanging (In-Line) | Rectangular Tongue | Black | 750 MCM | 10.41 mm | 0.41 " | 1.3 in | 33.02 mm | 1.03 in | 26.16 mm | Electro-Tin | Copper | 5.72 in | 145.29 mm | 750 MCM | 1.3 " |
