LK204 Series

Catalog

LCD MOD 80DIG 20X4 TRANSMISV WHT

...

Part	Text Color	Background Color	Display Mode	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Characters	Character Size [z]	Character Size [y]	Display Format [x]	Display Format [y]	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Backlight	Viewing Area [y]	Viewing Area [x]	Dot Size [custom]	Dot Size [custom]	Character Format [x]	Character Format [y]	Voltage - Supply	Dot Size [y]	Dot Size [x]

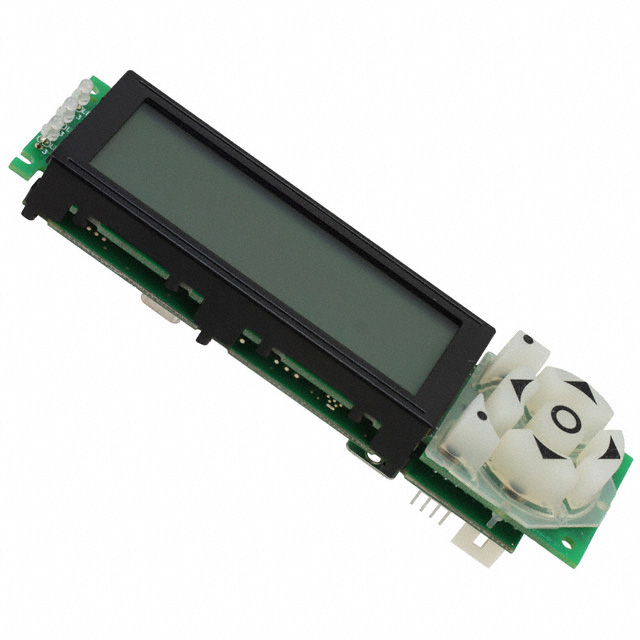

Matrix Orbital LK204-7T-1U-GW	Gray	White	Transmissive	I2C RS-232 TTL	4.75 V	5.25 V	LCD - Color	50 °C	0 °C	80	5.15 mm	3.2 mm	20	4	34.3 mm	38 mm	144 mm	LED - White	28.4 mm	82 mm	0.65 mm	0.6 mm	5 Dots	8 Dots
Matrix Orbital LK204-7T-1U-TCI-LV-E	Blue Green Red	Black	Transmissive	I2C RS-232 TTL			LCD - Color	70 °C	-20 ░C	80	5.15 mm	3.2 mm	20	4	34.3 mm	38 mm	144 mm	LED - Red/Green/Blue	28.4 mm	82 mm	0.65 mm	0.6 mm	5 Dots	8 Dots	3.3 V
Matrix Orbital LK204-25-422-R-VPT-E	Red	Black			9 V	35 V	LCD - Monochrome	70 °C	-20 ░C	80			20	4	28.82 mm	60 mm	98 mm		20.8 mm	70.4 mm			5 Dots	8 Dots		0.55 mm	0.55 mm

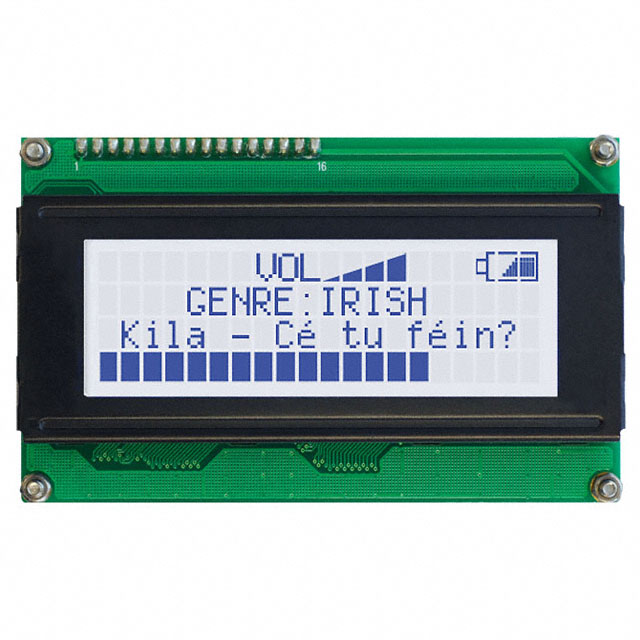

Matrix Orbital LK204-25-GW-V	Gray	White	Transmissive	I2C RS-232 TTL	9 V	15 V	TN - Twisted Nematic	50 °C	0 °C	80			20	4	28.98 mm	60 mm	98 mm	LED - White	25.2 mm	76 mm			5 Dots	8 Dots		0.55 mm	0.55 mm
Matrix Orbital LK204-7T-1U-WB-LV-E	White	Blue	Transmissive	I2C RS-232 TTL			LCD - Color	70 °C	-20 ░C	80	5.15 mm	3.2 mm	20	4	34.3 mm	38 mm	144 mm	LED - Blue	28.4 mm	82 mm	0.65 mm	0.6 mm	5 Dots	8 Dots	3.3 V
Matrix Orbital LK204-25-V-E	Yellow	Black		I2C RS-232 TTL	9 V	15 V	LCD - Monochrome	70 °C	-20 ░C	80			20	4	28.82 mm	60 mm	98 mm		20.8 mm	70.4 mm			5 Dots	8 Dots		0.55 mm	0.55 mm
Matrix Orbital LK204-25-422-WB-VPT-E	White	Blue			9 V	35 V	LCD - Monochrome	70 °C	-20 ░C	80			20	4	28.82 mm	60 mm	98 mm		20.8 mm	70.4 mm			5 Dots	8 Dots		0.55 mm	0.55 mm
Matrix Orbital LK204-25-GW-E	Gray	White	Transmissive	I2C RS-232 TTL	4.75 V	5.25 V	TN - Twisted Nematic	70 °C	-20 ░C	80			20	4	28.98 mm	60 mm	98 mm	LED - White	25.2 mm	76 mm			5 Dots	8 Dots		0.55 mm	0.55 mm
Matrix Orbital LK204-25-IY	Yellow	Black	Transmissive	I2C RS-232 TTL	4.75 V	5.25 V	TN - Twisted Nematic	50 °C	0 °C	80			20	4	28.98 mm	60 mm	98 mm		25.2 mm	76 mm			5 Dots	8 Dots		0.55 mm	0.55 mm

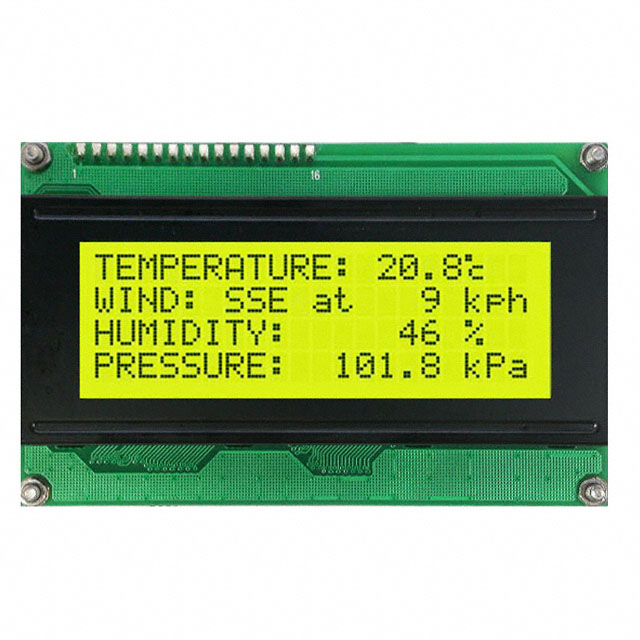

Matrix Orbital LK204-25-E	Gray	Green	Transmissive	I2C RS-232 TTL	4.75 V	5.25 V	TN - Twisted Nematic	70 °C	-20 ░C	80			20	4	28.98 mm	60 mm	98 mm		25.2 mm	76 mm			5 Dots	8 Dots		0.55 mm	0.55 mm
