320552 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

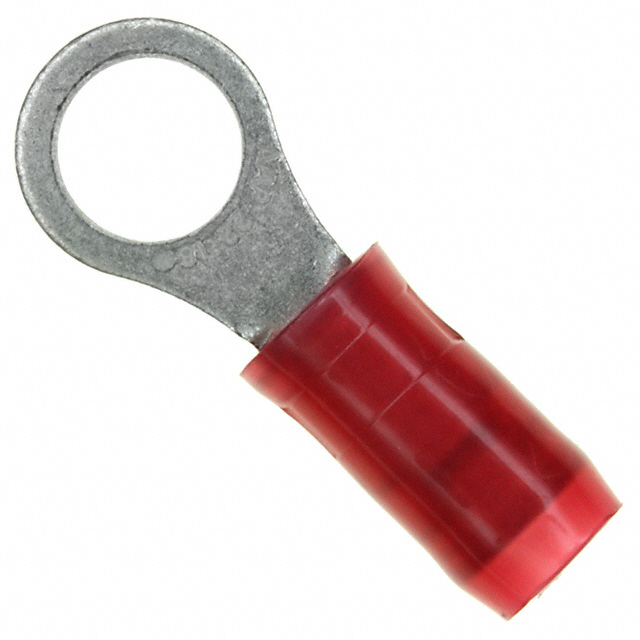

CONN RING CIRC 16-22AWG #10
| Part | Thickness | Thickness | Color | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Termination | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Features | Length - Overall [x] | Length - Overall [x] | Stud/Tab Size | Terminal Type | Width - Outer Edges [y] | Width - Outer Edges [y] | Contact Finish | Contact Material | Insulation | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.031 in | 0.79 mm | Red | 22 AWG | 16 AWG | Free Hanging (In-Line) | Crimp | 2.03 mm | 3.18 mm | 0.125 " | 0.08 in | Serrated Termination | 0.797 " | 20.24 mm | 10 Stud | Circular | 7.14 mm | 0.281 in | Tin | Copper | Insulated | Nylon Polyamide (PA) |
