9534 Series
Manufacturer: Belden Inc.
Beta
⌘K

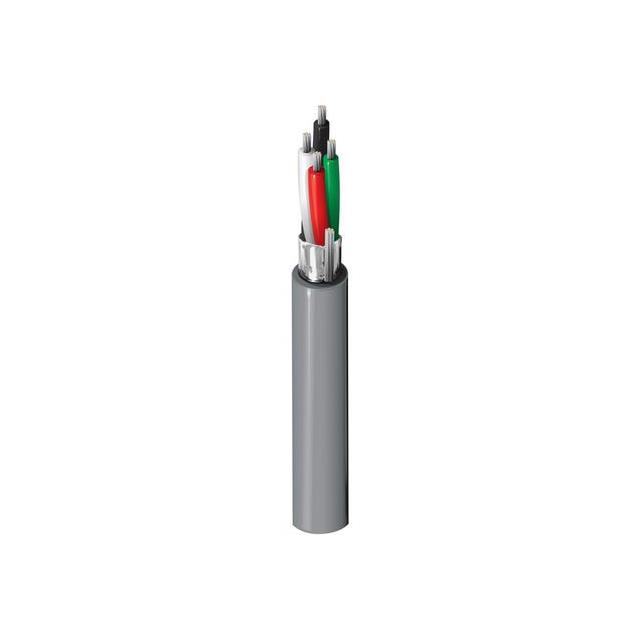

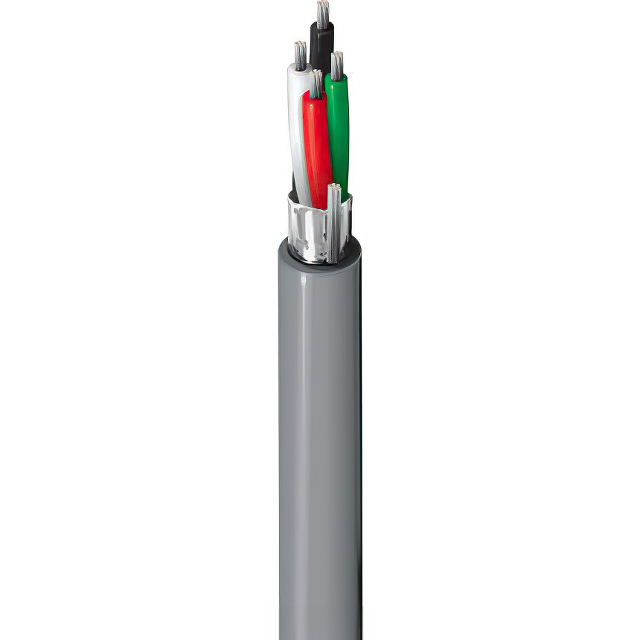

MULTICONDUCTOR CABLE, COMPUTER, SHIELDED, 4 CONDUCTOR, 24 AWG, 1000 FT, 304.8 M
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Shield Type | Number of Conductors | Usage | Cable Type | Ratings | Jacket Color | Length | Length | Conductor Material | Features | Wire Gauge | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 80 °C | -30 ░C | 300 VDC | Foil | 4 | Computer | Multi-Conductor | UL Style 2464 | Chrome | 304.8 m | 1000 ft | Copper Tinned | Drain Wire | 24 AWG | Poly-Vinyl Chloride (PVC) | 4.67 mm | 0.184 in |
 Belden Inc. | 100 % | Aluminum | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 80 °C | -30 ░C | 300 VDC | Foil | 4 | Computer | Multi-Conductor | UL Style 2464 | Chrome | 152.4 m | 500 ft | Copper Tinned | Drain Wire | 24 AWG | Poly-Vinyl Chloride (PVC) | 4.67 mm | 0.184 in |
Belden Inc. | 100 % | Aluminum | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 80 °C | -30 ░C | 300 VDC | Foil | 4 | Computer | Multi-Conductor | UL Style 2464 | Chrome | Copper Tinned | Drain Wire | 24 AWG | Poly-Vinyl Chloride (PVC) | 4.67 mm | 0.184 in |
