745493 Series

Catalog

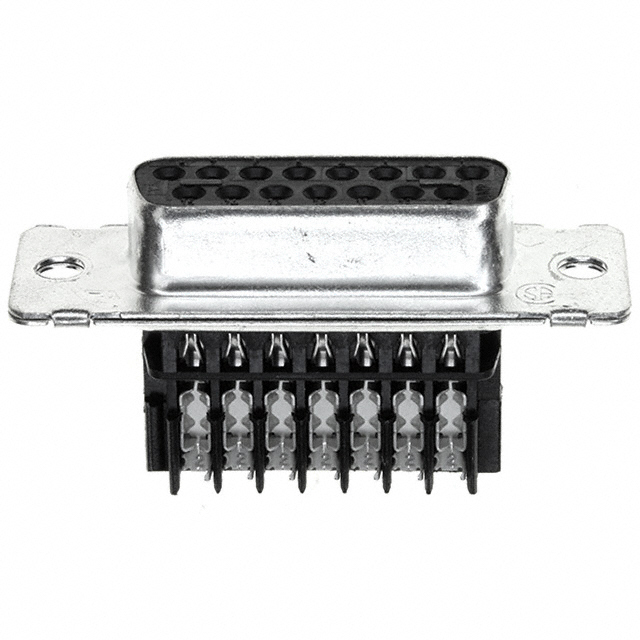

CONN D-SUB RCPT 15POS IDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Color	Wire Gauge [Min]	Wire Gauge [Max]	Dielectric Material	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Shell Size, Connector Layout	Number of Positions	Termination	Connector Style	Mounting Type	Connector Type	Current Rating (Amps)	Number of Rows [custom]	Contact Type	Flange Feature	Contact Finish
TE Connectivity AMP Connectors 745493-1	-55 C	105 ░C	Phosphor Bronze	Black	26 AWG	30 AWG	Thermoplastic Glass Filled	250 V	30 Áin	0.76 Ám	UL94 V-0	2	15	Discrete Wire IDC	D-Sub	Free Hanging (In-Line)	Receptacle Female Sockets	Varies by Wire Gauge	2	Signal	Housing/Shell (Unthreaded)	Gold
TE Connectivity AMP Connectors 745493-5	-55 C	105 ░C	Phosphor Bronze	Black	22 AWG	26 AWG	Thermoplastic Glass Filled	250 V	1 µin	0.025 µm	UL94 V-0	2	15	Discrete Wire IDC	D-Sub	Free Hanging (In-Line)	Receptacle Female Sockets	Varies by Wire Gauge	2	Signal	Housing/Shell (Unthreaded)	Gold
