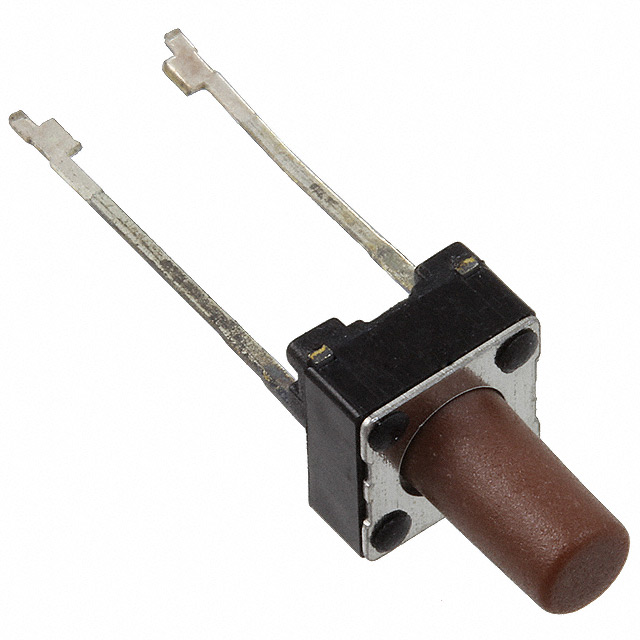

TL59B Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Mechanical Life | Actuator Material | Actuator Type | Contact Rating @ Voltage | Circuit | Actuator Orientation | Outline [x] | Outline [y] | Mounting Type | Operating Force | Switch Function | Actuator Height off PCB, Vertical [z] | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.25 mm | 100000 Cycles | Polybutylene Terephthalate (PBT) | Standard | 0.05 A 12 VDC | SPST-NO | Top Actuated | 6.2 mm | 6.2 mm | Through Hole | 100 gf | Off-Mom | 9.5 mm | PC Pin | -20 ░C | 70 °C | Non-Illuminated |
 E-Switch | 0.25 mm | 100000 Cycles | Polybutylene Terephthalate (PBT) | Standard | 0.05 A 12 VDC | SPST-NO | Top Actuated | 6.2 mm | 6.2 mm | Through Hole | 260 gf | Off-Mom | 9.5 mm | PC Pin | -20 ░C | 70 °C | Non-Illuminated |
E-Switch | 0.25 mm | 100000 Cycles | Polybutylene Terephthalate (PBT) | Standard | 0.05 A 12 VDC | SPST-NO | Top Actuated | 6.2 mm | 6.2 mm | Through Hole | 160 gf | Off-Mom | 9.5 mm | PC Pin | -20 ░C | 70 °C | Non-Illuminated |
