FC-335 Series

Catalog

RELAY GEN PURPOSE 3PST 35A 28V

Part	Coil Current	Must Operate Voltage	Mounting Type	Release Time	Must Release Voltage	Contact Form	Contact Form	Contact Form	Operate Time	Termination Style	Seal Rating	Coil Type	Coil Voltage	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Coil Resistance

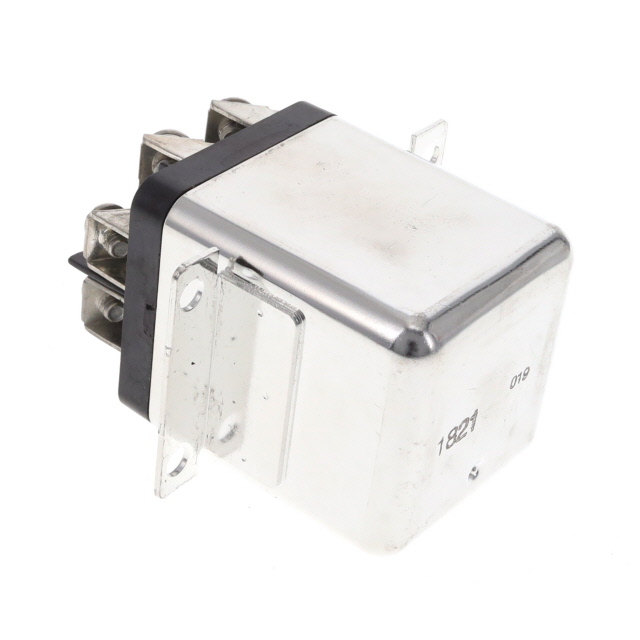

TE Connectivity Aerospace, Defense and Marine FC-335-SY3	750 mA	18 VDC	Chassis Mount	10 ms	1.5 VDC	DM	3PST-NO	3 Form X	20 ms	Screw Terminal	Sealed - Hermetically	Non Latching	28 VDC	35 A	125 °C	-70 °C	General Purpose	160 Ohms

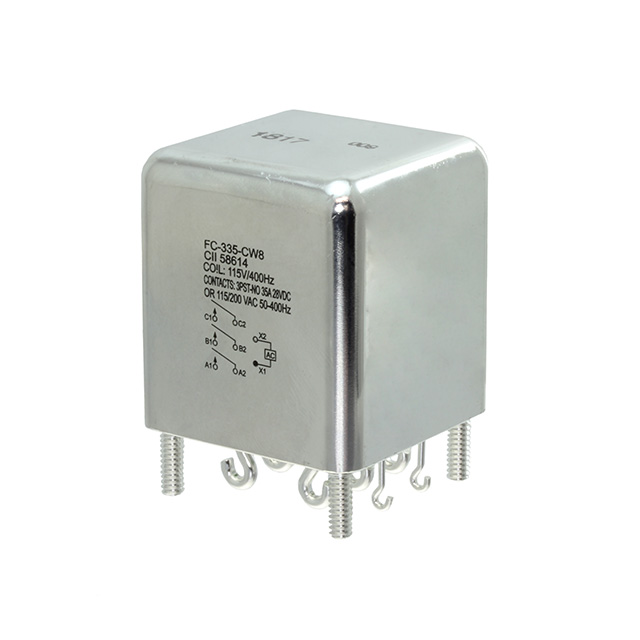

TE Connectivity Aerospace, Defense and Marine FC-335-CW8	550 mA	95 VAC	Chassis Mount	50 ms	5 VAC	DM	3PST-NO	3 Form X	25 ms	Solder Hook	Sealed - Hermetically	Non Latching	115 VAC	35 A	125 °C	-70 °C	General Purpose	209 Ohms

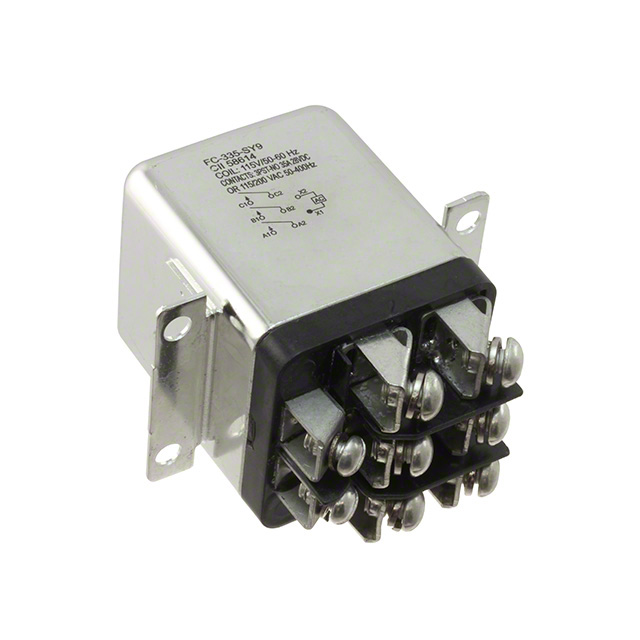

TE Connectivity Aerospace, Defense and Marine FC-335-SY9	600 mA	95 VAC	Chassis Mount	50 ms	5 VAC	DM	3PST-NO	3 Form X	25 ms	Screw Terminal	Sealed - Hermetically	Non Latching	115 VAC	35 A	125 °C	-70 °C	General Purpose	192 Ohms
TE Connectivity Aerospace, Defense and Marine FC-335-CW3	750 mA	18 VDC	Chassis Mount	10 ms	1.5 VDC	DM	3PST-NO	3 Form X	20 ms	Solder Hook	Sealed - Hermetically	Non Latching	28 VDC	35 A	125 °C	-70 °C	General Purpose	160 Ohms
