PRPN021 Series

Catalog

CONN HEADER VERT 2POS 2MM

Part	Contact Material	Insulation Material	Material Flammability Rating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Length - Post [custom]	Contact Length - Post	Termination	Contact Finish - Mating	Contact Type	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Number of Positions	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insulation Color	Mounting Type	Contact Shape	Style	Shrouding	Pitch - Mating	Pitch - Mating

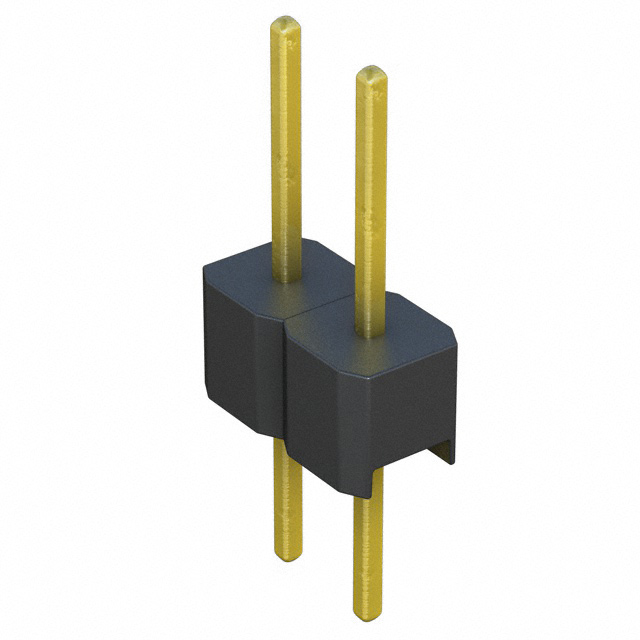

Sullins Connector Solutions PRPN021PAEN	Brass	Polyester	UL94 V-0	All	Flash	0.11 in	2.79 mm	Solder	Gold	Male Pin	8.8 mm	0.346 in	4 mm	0.157 in	Gold	2 mm	0.079 in	Flash	2	Header	1	-40 C	105 ░C	Push-Pull	Black	Through Hole	Square	Board to Board Cable	Unshrouded	0.079 "	2 mm

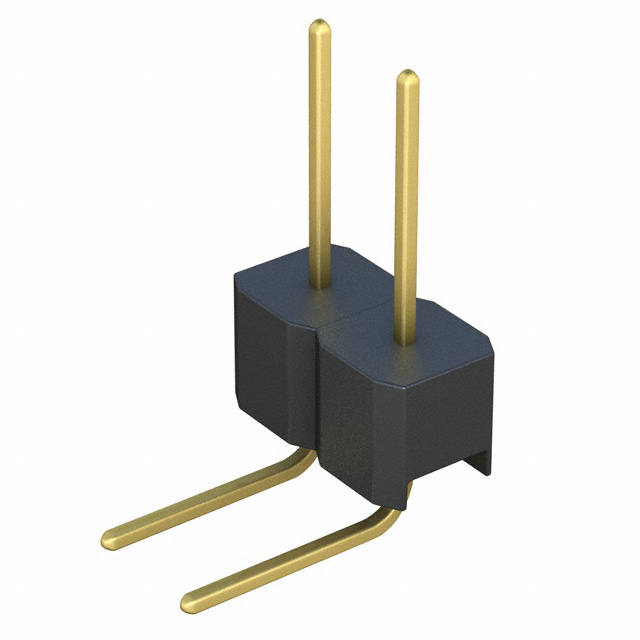

Sullins Connector Solutions PRPN021PARN	Brass	Polyester	UL94 V-0	All	Flash	0.11 in	2.79 mm	Solder	Gold	Male Pin			4 mm	0.157 in	Gold	2 mm	0.079 in	Flash	2	Header	1	-40 C	105 ░C	Push-Pull	Black	Right Angle Through Hole	Square	Board to Board Cable	Unshrouded	0.079 "	2 mm
