DRC-40 Series

Catalog

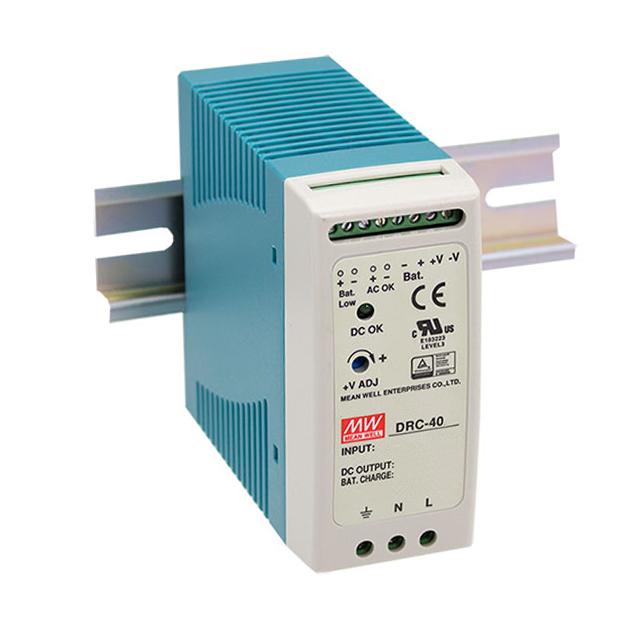

AC/DC DIN RAIL SUP 2X27.6V 40W

Part	Approval Agency	Number of Outputs	DC Voltage - Input (Max) [Max]	Current - Output (Max)	Voltage - Isolation	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Output 1	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	DC Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Input Type	Efficiency	Voltage - Output 2
MEAN WELL USA Inc. DRC-40B	CB CE cURus TUV	2	370 V	500 mA 950 mA	3000 V	90 VAC	264 VAC	27.6 V	Adjustable Output Universal Input	40 mm	90 mm	3.54 "	3.94 in	100 mm	1.57 "	ITE (Commercial)	127 V	-30 °C	70 °C	40 W	AC or DC	87 %	27.6 V
