K42X Series
Manufacturer: Kycon, Inc.
Beta
⌘K
D-SUB DUALPORT CONNECTORS DL-PRT 37F OVR 37M 750" 4GB
| Part | Contact Type | Contact Finish Thickness | Shell Material, Finish | Mounting Type | Connector Style | Flange Feature | Flange Feature | Termination | Connector Type | Number of Positions [Min] | Number of Positions [Max] | Shell Size, Connector Layout | Backset Spacing | Backset Spacing | Material Flammability Rating | Features | Number of Rows [custom] | Contact Finish | Current Rating (Amps) | Shell Size, Connector Layout | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Voltage Rating | Contact Material | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout [y] | Shell Size, Connector Layout [x] | Number of Rows | Number of Positions | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | Signal | Flash | Nickel Plated Steel | Right Angle Through Hole | D-Sub - Stacked | Housing/Shell | 4-40 | Solder | Plug Male Pins Receptacle Female Sockets | 37 | 37 | 4 | 8.08 mm | 0.318 " | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets | 2 | Gold | 1.2 A | ||||||||||||||||
 Kycon, Inc. | Signal | Flash | Nickel Plated Steel | Right Angle Through Hole | D-Sub - Stacked | 4-40 Mating Side Female Screwlock | Solder | Plug Male Pins | 8.08 mm | 0.318 " | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets | 2 | Gold | 1.2 A | 3 (DB B) | 25 | ||||||||||||||||||
Kycon, Inc. | Signal | Nickel Plated Steel | Right Angle Through Hole | D-Sub - Stacked | 4-40 Mating Side Female Screwlock | Solder | Plug Male Pins | 8.08 mm | 0.318 " | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets | 2 | Gold | 1.2 A | 9 | 30 Áin | 0.76 Ám | 1 | |||||||||||||||||
Kycon, Inc. | Signal | Flash | Nickel Plated Steel | Right Angle Through Hole | D-Sub - Stacked | 4-40 Mating Side Female Screwlock | Solder | Plug Male Pins | 37 | 37 | 4 | 8.08 mm | 0.318 " | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets | 2 | Gold | 1.2 A | |||||||||||||||||
Kycon, Inc. | Signal | Nickel Plated Steel | Right Angle Through Hole | D-Sub - Stacked | 4-40 Mating Side Female Screwlock | Solder | Plug Male Pins | 37 | 37 | 4 | 8.08 mm | 0.318 " | UL94 V-0 | Board Lock Grounding Indents Mounting Brackets | 2 | Gold | 1.2 A | 30 Áin | 0.76 Ám | ||||||||||||||||

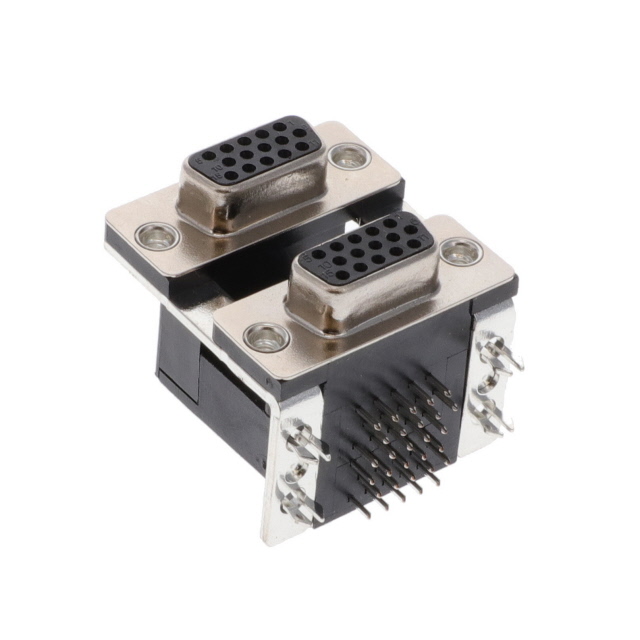

 Kycon, Inc. | Signal | Flash | Nickel Plated Steel | Right Angle Through Hole | D-Sub High Density - Stacked | Housing/Shell | 4-40 | Solder | Receptacle Female Sockets | 8.89 mm | 0.35 in | UL94 V-0 | Board Lock Mounting Brackets | Gold | 2 A | 30 VDC | Phosphor Bronze | Polybutylene Terephthalate (PBT) Glass Filled | Black | -55 C | 105 ░C | 1 (DE E) | 1 (DE E) | 3 | 15 | 15 | |||||||||
Kycon, Inc. | Signal | Nickel Plated Steel | Right Angle Through Hole | D-Sub - Stacked | 4-40 Mating Side Female Screwlock | Solder | Receptacle Female Sockets | 8.08 mm | 0.318 " | UL94 V-0 | Board Lock Mounting Brackets | 2 | Gold | 1.2 A | 9 | 30 Áin | 0.76 Ám | 1 | 30 VDC | Phosphor Bronze | Polybutylene Terephthalate (PBT) Glass Filled | Black | -55 C | 105 ░C |
