V1D2AH0B Series

Catalog

SWITCH ROCKER SPST 20A 12V

Part	Switch Function	Illumination Type, Color	Electrical Life	Termination Style	Ingress Protection	Voltage Rating - DC	Color - Actuator/Cap	Actuator Marking	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Illumination Voltage (Nominal)	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Circuit	Approval Agency	Mounting Type	Mechanical Life
Carling Technologies V1D2AH0B-PZC50-100	On-Off	Green LED	100000 Cycles	Quick Connect - 0.250" (6.3mm)	IP66/IP68	12 V	Black	High Beam Low Beam Vertical	Convex (Reverse V) - Illuminated	85 °C	-40 °C	20 A	12 VDC	21.08 mm	36.83 mm	SPST	CSA UL VDE	Panel Mount Snap-In	100000 Cycles
Carling Technologies V1D2AH0B-G8C58-300	On-Off	Green LED	100000 Cycles	Quick Connect - 0.250" (6.3mm)	IP66/IP68	12 V	Black	Low Beam - High Beam Vertical	Convex (Reverse V) - Illuminated	85 °C	-40 °C	20 A	12 VDC	21.08 mm	36.83 mm	SPST	CSA UL VDE	Panel Mount Snap-In	100000 Cycles
Carling Technologies V1D2AH0B-G8HYD-100	On-Off	Green LED	100000 Cycles	Quick Connect - 0.250" (6.3mm)	IP66/IP68	12 V		High Beam Low Beam Vertical	Convex (Reverse V) - Illuminated	85 °C	-40 °C	20 A	12 VDC	21.08 mm	36.83 mm	SPST	CSA UL VDE	Panel Mount Snap-In	100000 Cycles
Carling Technologies V1D2AH0B-G8C63-300	On-Off	Green LED	100000 Cycles	Quick Connect - 0.250" (6.3mm)	IP66/IP68	12 V	Black	Low Beam - High Beam Vertical	Convex (Reverse V) - Illuminated	85 °C	-40 °C	20 A	12 VDC	21.08 mm	36.83 mm	SPST	CSA UL VDE	Panel Mount Snap-In	100000 Cycles
Carling Technologies V1D2AH0B-G8C63-100	On-Off	Green LED	100000 Cycles	Quick Connect - 0.250" (6.3mm)	IP66/IP68	12 V	Black	High Beam Low Beam Vertical	Convex (Reverse V) - Illuminated	85 °C	-40 °C	20 A	12 VDC	21.08 mm	36.83 mm	SPST	CSA UL VDE	Panel Mount Snap-In	100000 Cycles

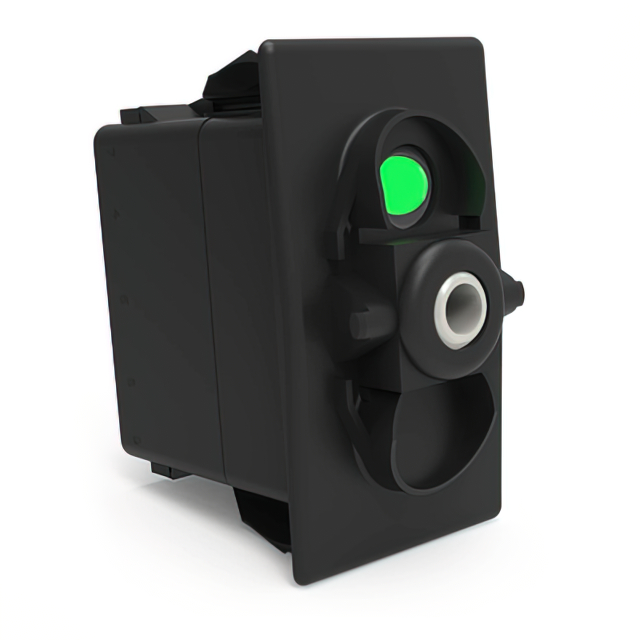

Carling Technologies V1D2AH0B-00000-000	On-Off	Green LED	100000 Cycles	Quick Connect - 0.250" (6.3mm)	IP66/IP68	12 V		Varies by Cap	Actuator Arm Cap Required - Illuminated	85 °C	-40 °C	20 A	12 VDC	21.08 mm	36.83 mm	SPST	CSA UL VDE	Panel Mount Snap-In	100000 Cycles
Carling Technologies V1D2AH0B-A9C3F-100	On-Off	Green LED	100000 Cycles	Quick Connect - 0.250" (6.3mm)	IP66/IP68	12 V	Black	Master Light - High Beam Vertical	Convex (Reverse V) - Illuminated	85 °C	-40 °C	20 A	12 VDC	21.08 mm	36.83 mm	SPST	CSA UL VDE	Panel Mount Snap-In	100000 Cycles
