175639 Series

Catalog

CONN RCPT 20P 0.049 TIN SMD R/A

Part	Current Rating (Amps)	Contact Material	Voltage Rating	Fastening Type	Insulation Material	Connector Type	Insulation Color	Number of Positions Loaded	Number of Rows	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Features	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Contact Type	Pitch - Mating	Pitch - Mating

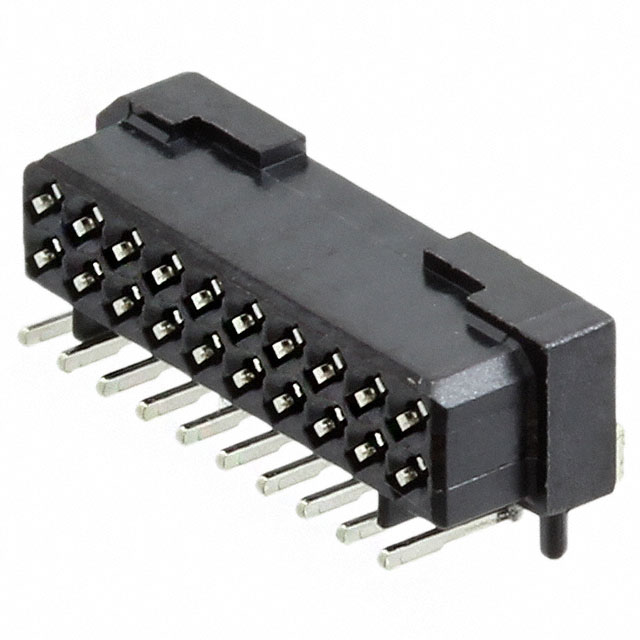

TE Connectivity Raychem Cable Protection 5-175639-0	0.5 A	Phosphor Bronze	50 V	Push-Pull	Polyphenylene Sulfide (PPS)	Receptacle	Black	All	2	UL94 V-0	0.049 in	1.25 mm	Board Guide	20	-30 ░C	105 ░C	Surface Mount Right Angle	Solder	Female Socket	1.25 mm	0.049 in
TE Connectivity Raychem Cable Protection 4-175639-2	0.5 A	Phosphor Bronze	50 V	Push-Pull	Polyphenylene Sulfide (PPS)	Receptacle	Black	All	2	UL94 V-0	0.049 in	1.25 mm	Board Guide	12	-30 ░C	105 ░C	Surface Mount Right Angle	Solder	Female Socket	1.25 mm	0.049 in
TE Connectivity Raychem Cable Protection 4-175639-8	0.5 A	Phosphor Bronze	50 V	Push-Pull	Polyphenylene Sulfide (PPS)	Receptacle	Black	All	2	UL94 V-0	0.049 in	1.25 mm	Board Guide	18	-30 ░C	105 ░C	Surface Mount Right Angle	Solder	Female Socket	1.25 mm	0.049 in
