XAN.M22 Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 22P GOLD SLDR CUP

Part	Features	Shielding	Primary Material	Orientation	Fastening Type	Contact Finish - Mating	Shell Size - Insert	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Mounting Type	Current Rating (Amps)	Shell Material	Number of Positions	Color	Ingress Protection	Insert Material	Applications	Cable Opening
LEMO XAN.M22.BLA.6B	Backshell	Unshielded	Plastic	N (Normal)	Push-Pull	Gold	M22	Plug Male Pins	170 °C	-50 °C	Sulfone	6.5 mm	0.209 in	0.256 in	5.3 mm	Free Hanging (In-Line)	2 A	Sulfone	22	White	IP50 - Dust Protected	Polyetheretherketone (PEEK)	Industrial Medical Testing Equipment & Measurement

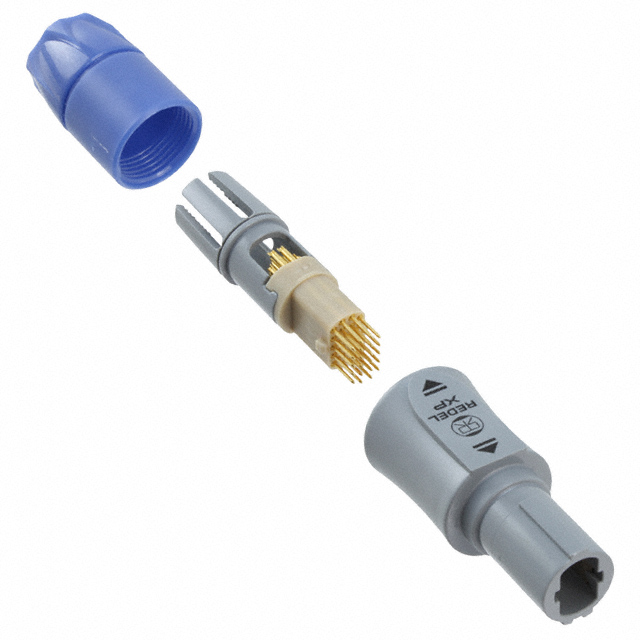

LEMO XAN.M22.GLA.6A	Backshell	Unshielded	Plastic	N (Normal)	Push-Pull	Gold	M22	Plug Male Pins	170 °C	-50 °C	Sulfone	6.5 mm	0.209 in	0.256 in	5.3 mm	Free Hanging (In-Line)	2 A	Sulfone	22	Blue Gray	IP50 - Dust Protected	Polyetheretherketone (PEEK)	Industrial Medical Testing Equipment & Measurement
LEMO XAN.M22.GLA.5G	Backshell	Unshielded	Plastic	N (Normal)	Push-Pull	Gold	M22	Plug Male Pins	170 °C	-50 °C	Sulfone		0.157 in	0.205 in		Free Hanging (In-Line)	2 A	Sulfone	22	Gray	IP50 - Dust Protected	Polyetheretherketone (PEEK)	Industrial Medical Testing Equipment & Measurement	4 mm 5.2 mm

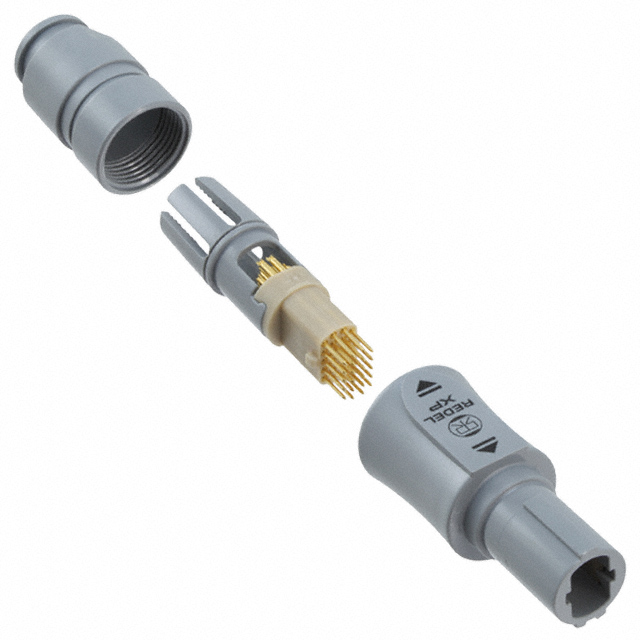

LEMO XAN.M22.GLA.6GZ	Backshell	Unshielded	Plastic	N (Normal)	Push-Pull	Gold	M22	Plug Male Pins	170 °C	-50 °C	Sulfone	6.5 mm	0.209 in	0.256 in	5.3 mm	Free Hanging (In-Line)	2 A	Sulfone	22	Gray	IP50 - Dust Protected	Polyetheretherketone (PEEK)	Industrial Medical Testing Equipment & Measurement
LEMO XAN.M22.GLA.6G	Backshell	Unshielded	Plastic	N (Normal)	Push-Pull	Gold	M22	Plug Male Pins	170 °C	-50 °C	Sulfone	6.5 mm	0.209 in	0.256 in	5.3 mm	Free Hanging (In-Line)	2 A	Sulfone	22	Gray	IP50 - Dust Protected	Polyetheretherketone (PEEK)	Industrial Medical Testing Equipment & Measurement
