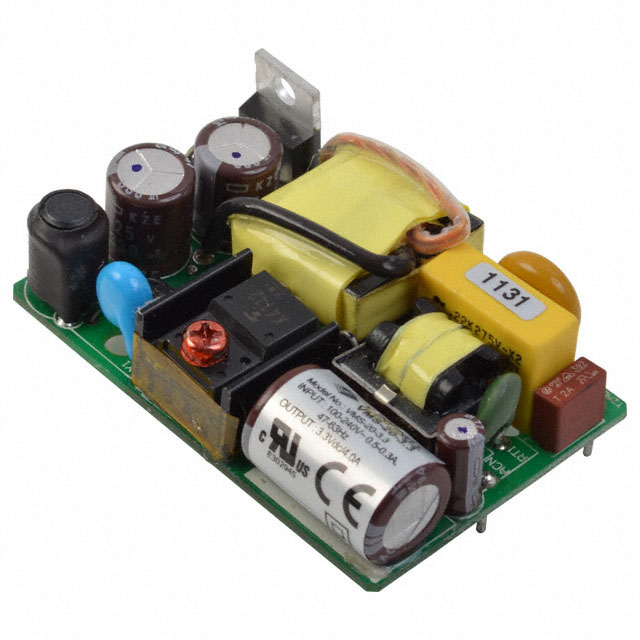

VMS-20 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 5V 20W

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Applications	Standard Number	Type	Current - Output (Max) [Max]	Weight	Weight	Mounting Type	Features	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Power (Watts)	Load Regulation	Efficiency	Number of Outputs	Line Regulation
CUI Inc. VMS-20-5	60.5 mm	20.4 mm	40.6 mm	1.6 in	2.38 in	0.8 "	70 °C	-25 °C	CB Scheme EN IEC SIQ TUV UL	Medical	55011 Class B 55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61010-1 61204-3	Open Frame	4 A	0.11 lb	49.9 g	Through Hole	Universal Input	4-DIP Module	264 VAC	90 VAC	5 V	20 W	±1%	80 %	1	0.5 %
CUI Inc. VMS-20-12	60.5 mm	20.4 mm	40.6 mm	1.6 in	2.38 in	0.8 "	70 °C	-25 °C	CB Scheme EN IEC SIQ TUV UL	Medical	55011 Class B 55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61010-1 61204-3	Open Frame	1.7 A	0.11 lb	49.9 g	Through Hole	Universal Input	4-DIP Module	264 VAC	90 VAC	12 V	20 W	±1%	83 %	1	0.5 %
CUI Inc. VMS-20-9	60.5 mm	20.4 mm	40.6 mm	1.6 in	2.38 in	0.8 "	70 °C	-25 °C	CB Scheme EN IEC SIQ TUV UL	Medical	55011 Class B 55024 55032 Class B 60601-1 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61010-1 61204-3	Open Frame	2.3 A	0.11 lb	49.9 g	Through Hole	Universal Input	4-DIP Module	264 VAC	90 VAC	9 V	20 W	±1%	81 %	1	0.5 %
