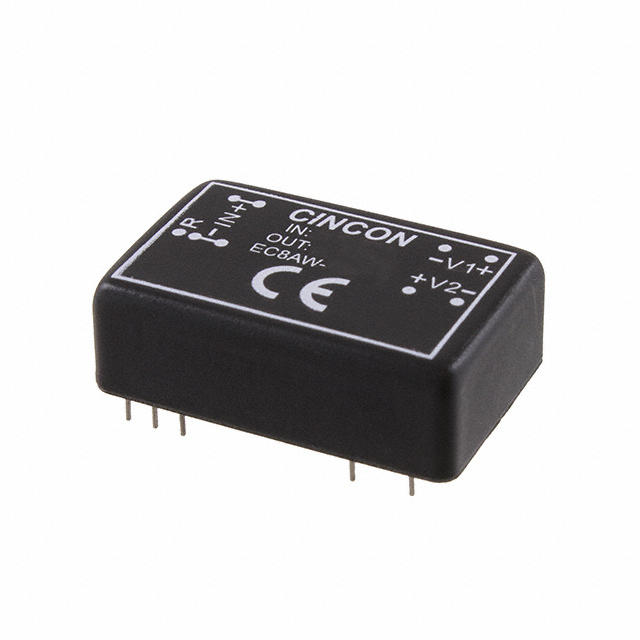

EC8AW Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
DC DC CONVERTER +/-15V 15W
| Part | Type | Package / Case | Current - Output (Max) | Standard Number | Voltage - Output 2 | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 1 | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Efficiency | Number of Outputs | Features | Voltage - Input (Min) [Min] | Mounting Type | Voltage - Input (Max) [Max] | Power (Watts) | Current - Output (Max) [Max] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | Isolated Module | 24-DIP Module 9 Leads | 500 mA | 60950-1 | -15 V | 1.5 kV | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 15 V | ITE (Commercial) | -40 °C | 85 °C | CE | 90 % | 2 | OCP OVP Remote On/Off SCP UVLO | 18 V | Through Hole | 75 V | 15 W | ||
Cincon Electronics Co. LTD | Isolated Module | 24-DIP Module 9 Leads | 60950-1 | -12 V | 1.5 kV | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 12 V | ITE (Commercial) | -40 °C | 85 °C | CE | 89 % | 2 | OCP OVP Remote On/Off SCP UVLO | 9 V | Through Hole | 36 V | 15 W | 625 mA | 625 mA | |
Cincon Electronics Co. LTD | Isolated Module | 24-DIP Module 9 Leads | 500 mA | 60950-1 | -15 V | 1.5 kV | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 15 V | ITE (Commercial) | -40 °C | 85 °C | CE | 90 % | 2 | OCP OVP Remote On/Off SCP UVLO | 9 V | Through Hole | 36 V | 15 W | ||
Cincon Electronics Co. LTD | Isolated Module | 24-DIP Module 9 Leads | 60950-1 | 1.5 kV | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 12 V | ITE (Commercial) | -40 °C | 85 °C | CE | 90 % | 1 | OCP OVP Remote On/Off SCP UVLO | 18 V | Through Hole | 75 V | 15 W | 1.25 A | |||
Cincon Electronics Co. LTD | Isolated Module | 24-DIP Module 9 Leads | 60950-1 | 1.5 kV | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 5 V | ITE (Commercial) | -40 °C | 85 °C | CE | 90 % | 1 | OCP OVP Remote On/Off SCP UVLO | 18 V | Through Hole | 75 V | 15 W | 3 A | |||
Cincon Electronics Co. LTD | Isolated Module | 24-DIP Module 9 Leads | 60950-1 | 1.5 kV | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 15 V | ITE (Commercial) | -40 °C | 85 °C | CE | 90 % | 1 | OCP OVP Remote On/Off SCP UVLO | 18 V | Through Hole | 75 V | 15 W | 1 A | |||
Cincon Electronics Co. LTD | Isolated Module | 24-DIP Module 9 Leads | 60950-1 | 1.5 kV | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 12 V | ITE (Commercial) | -40 °C | 85 °C | CE | 90 % | 1 | OCP OVP Remote On/Off SCP UVLO | 9 V | Through Hole | 36 V | 15 W | 1.25 A | |||
Cincon Electronics Co. LTD | Isolated Module | 24-DIP Module 9 Leads | 60950-1 | 1.5 kV | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 3.3 V | ITE (Commercial) | -40 °C | 85 °C | CE | 89 % | 1 | OCP OVP Remote On/Off SCP UVLO | 18 V | Through Hole | 75 V | 13 W | 4 A | |||
Cincon Electronics Co. LTD | Isolated Module | 24-DIP Module 9 Leads | 60950-1 | 1.5 kV | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 15 V | ITE (Commercial) | -40 °C | 85 °C | CE | 90 % | 1 | OCP OVP Remote On/Off SCP UVLO | 9 V | Through Hole | 36 V | 15 W | 1 A |
