XDUR14 Series

Manufacturer: SunLED

Catalog

DISP 7SEG 0.56" QUAD RED 12DIP

Part	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Package / Case	Package / Case	Display Type	Millicandela Rating	Number of Characters	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Wavelength - Peak	Current - Test	Power Dissipation (Max) [Max]	Color	Voltage - Forward (Vf) (Typ)	Number of Characters	Package / Case	Package / Case [x]	Package / Case [x]
SunLED XDUR14A4-1A	Common Anode	0.56 in	14.22 mm	15.24 mm	0.6 in	12-DIP	7-Segment	2 mcd	4	8.1 mm	1.98 "	0.748 in	0.319 "	50.3 mm	19 mm	627 nm	10 mA	75 mw	Red	1.9 V
SunLED XDUR14C4-1A	Common Cathode	0.56 in	14.22 mm	15.24 mm	0.6 in	12-DIP	7-Segment	2 mcd	4	8.1 mm	1.98 "	0.748 in	0.319 "	50.3 mm	19 mm	627 nm	10 mA	75 mw	Red	1.9 V
SunLED XDUR14A	Common Anode	0.56 in	14.22 mm			10-DIP	7-Segment			12.7 mm	0.75 in	0.315 in	0.5 "	19.05 mm	8 mm	627 nm	10 mA	75 mw	Red	1.9 V	1	0.6 in 15.24 mm

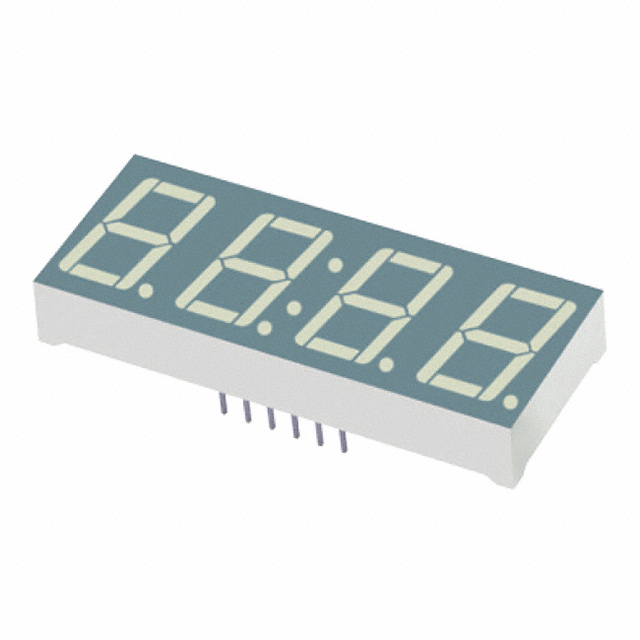

SunLED XDUR14C4-A	Common Cathode	0.56 in	14.22 mm	15.24 mm	0.6 in	12-DIP	7-Segment	2 mcd	4	8.1 mm	1.98 "	0.748 in	0.319 "	50.3 mm	19 mm	627 nm	10 mA	75 mw	Red	1.9 V
SunLED XDUR14A2	Common Anode	0.56 in	14.22 mm			18-DIP	7-Segment	7.99 mcd	2	25 mm	0.75 in	0.325 in	0.984 "	19.05 mm	8.25 mm	627 nm	10 mA	75 mw	Red	1.9 V			15.24 mm	0.6 in
