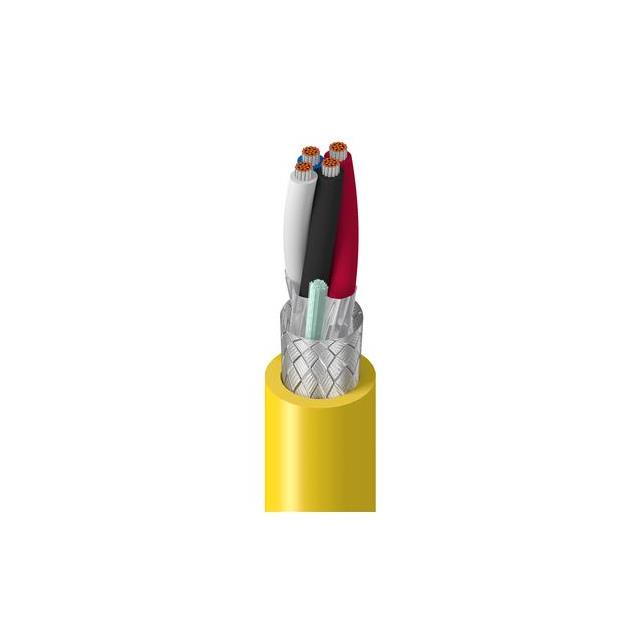

3083A Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 4COND 15/18AWG
| Part | Shield Coverage | Shield Material | Voltage | Jacket Color | Conductor Insulation | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Wire Gauge | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 300 VDC | Yellow | Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC) | Multi-Pair | -30 ░C | 105 ░C | 304.8 m | 1000 ft | 11.41 mm | 0.449 " | Drain Wire | 0.053 " | 1.346 mm | Copper Tinned | Chlorinated Polyethylene (CPE) | 19 | 30 AWG | 19 | 27 AWG | 4 | 15 AWG 18 AWG | Braid Foil |
