TPS62320 Series

Catalog

ADJUSTABLE, 500-MA, 3-MHZ STEP-DOWN CONVERTER IN QFN OR CHIP-SCALE

Part	Mounting Type	Output Configuration	Function	Frequency - Switching	Topology	Voltage - Input (Min) [Min]	Voltage - Output (Max) [Max]	Package / Case	Output Type	Number of Outputs	Current - Output	Voltage - Output (Min/Fixed)	Supplier Device Package	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Texas Instruments TPS62320DRCR	Surface Mount	Positive	Step-Down	3 MHz	Buck	2.7 V	5.4 V	10-VFDFN Exposed Pad	Adjustable	1	500 mA	0.6 V	10-VSON (3x3)	6 V	85 °C	-40 °C

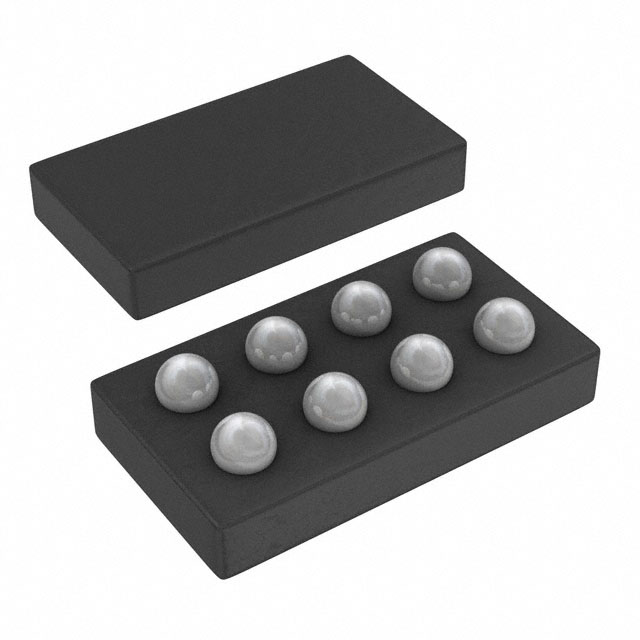

Texas Instruments TPS62320YEDR	Surface Mount	Positive	Step-Down	3 MHz	Buck	2.7 V	5.4 V		Adjustable	1	500 mA	0.6 V	8-DSBGA	6 V	85 °C	-40 °C
Texas Instruments TPS62320YZDT	Surface Mount	Positive	Step-Down	3 MHz	Buck	2.7 V	5.4 V		Adjustable	1	500 mA	0.6 V	8-DSBGA	6 V	85 °C	-40 °C
Texas Instruments TPS62320YZDR	Surface Mount	Positive	Step-Down	3 MHz	Buck	2.7 V	5.4 V		Adjustable	1	500 mA	0.6 V	8-DSBGA	6 V	85 °C	-40 °C
Texas Instruments TPS62320YEDT	Surface Mount	Positive	Step-Down	3 MHz	Buck	2.7 V	5.4 V		Adjustable	1	500 mA	0.6 V	8-DSBGA	6 V	85 °C	-40 °C
