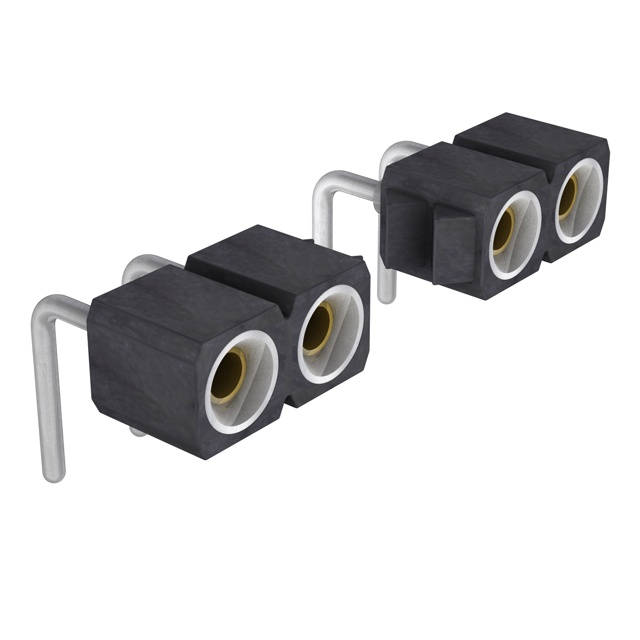

399-83 Series

Manufacturer: Preci-Dip

Catalog

CONN SOCKET 3P 0.1 GOLD PCB R/A

Part	Contact Material	Contact Shape	Insulation Material	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Termination	Mounting Type	Current Rating (Amps)	Number of Positions Loaded	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Color	Connector Type	Contact Type	Contact Finish - Mating	Fastening Type	Insulation Height	Insulation Height	Number of Positions	Number of Positions [custom]

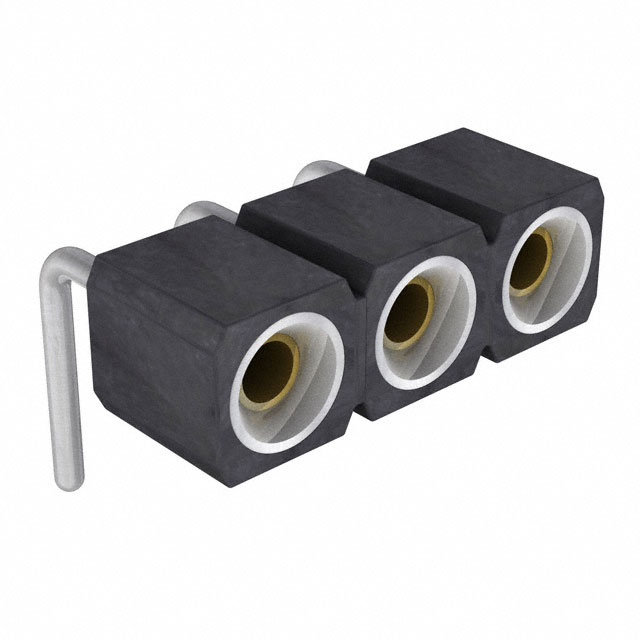

Preci-Dip 399-83-103-10-003101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	Solder	Right Angle Through Hole	3 A	All	UL94 V-0	-55 C	125 °C	1	0.126 "	3.2 mm	0.1 "	2.54 mm	Tin	Black	Socket	Female Socket	Gold	Push-Pull	0.1 in	2.54 mm
Preci-Dip 399-83-148-10-003101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	Solder	Right Angle Through Hole	3 A	All	UL94 V-0	-55 C	125 °C	1	0.126 "	3.2 mm	0.1 "	2.54 mm	Tin	Black	Socket	Female Socket	Gold	Push-Pull	0.1 in	2.54 mm	48
Preci-Dip 399-83-105-10-003101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	Solder	Right Angle Through Hole	3 A	All	UL94 V-0	-55 C	125 °C	1	0.126 "	3.2 mm	0.1 "	2.54 mm	Tin	Black	Socket	Female Socket	Gold	Push-Pull	0.1 in	2.54 mm	5
Preci-Dip 399-83-110-10-003101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	Solder	Right Angle Through Hole	3 A	All	UL94 V-0	-55 C	125 °C	1	0.126 "	3.2 mm	0.1 "	2.54 mm	Tin	Black	Socket	Female Socket	Gold	Push-Pull	0.1 in	2.54 mm	10
Preci-Dip 399-83-126-10-003101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	Solder	Right Angle Through Hole	3 A	All	UL94 V-0	-55 C	125 °C	1	0.126 "	3.2 mm	0.1 "	2.54 mm	Tin	Black	Socket	Female Socket	Gold	Push-Pull	0.1 in	2.54 mm	26
Preci-Dip 399-83-134-10-003101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	Solder	Right Angle Through Hole	3 A	All	UL94 V-0	-55 C	125 °C	1	0.126 "	3.2 mm	0.1 "	2.54 mm	Tin	Black	Socket	Female Socket	Gold	Push-Pull	0.1 in	2.54 mm		34
Preci-Dip 399-83-106-10-003101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	Solder	Right Angle Through Hole	3 A	All	UL94 V-0	-55 C	125 °C	1	0.126 "	3.2 mm	0.1 "	2.54 mm	Tin	Black	Socket	Female Socket	Gold	Push-Pull	0.1 in	2.54 mm	6
Preci-Dip 399-83-127-10-003101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	Solder	Right Angle Through Hole	3 A	All	UL94 V-0	-55 C	125 °C	1	0.126 "	3.2 mm	0.1 "	2.54 mm	Tin	Black	Socket	Female Socket	Gold	Push-Pull	0.1 in	2.54 mm	27
Preci-Dip 399-83-153-10-003101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	Solder	Right Angle Through Hole	3 A	All	UL94 V-0	-55 C	125 °C	1	0.126 "	3.2 mm	0.1 "	2.54 mm	Tin	Black	Socket	Female Socket	Gold	Push-Pull	0.1 in	2.54 mm	53
Preci-Dip 399-83-118-10-003101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	29.5 µin	0.75 µm	Solder	Right Angle Through Hole	3 A	All	UL94 V-0	-55 C	125 °C	1	0.126 "	3.2 mm	0.1 "	2.54 mm	Tin	Black	Socket	Female Socket	Gold	Push-Pull	0.1 in	2.54 mm	18
