842-039 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 39POS 0.100

Part	Material - Insulation	Termination Rows	Card Type	Number of Rows	Read Out	Termination	Flange Feature	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Mounting Type	Pitch	Pitch	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Color	Gender	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 842-039-524-108	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	1	Single	Solder	4-40 Flush Mount Threaded Insert Top Opening	39	125 °C	-40 C	Cantilever	Through Hole	0.1 "	2.54 mm	39	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Female
EDAC Inc. 842-039-540-112	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	1	Single	Wire Wrap	Flush Mount Side Opening Unthreaded	39	125 °C	-40 C	Cantilever	Through Hole	0.1 "	2.54 mm	39	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Female	0.128 "	3.25 mm
EDAC Inc. 842-039-520-102	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	1	Single	Solder	Flush Mount Top Opening Unthreaded	39	125 °C	-40 C	Cantilever	Through Hole	0.1 "	2.54 mm	39	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Female	0.128 "	3.25 mm

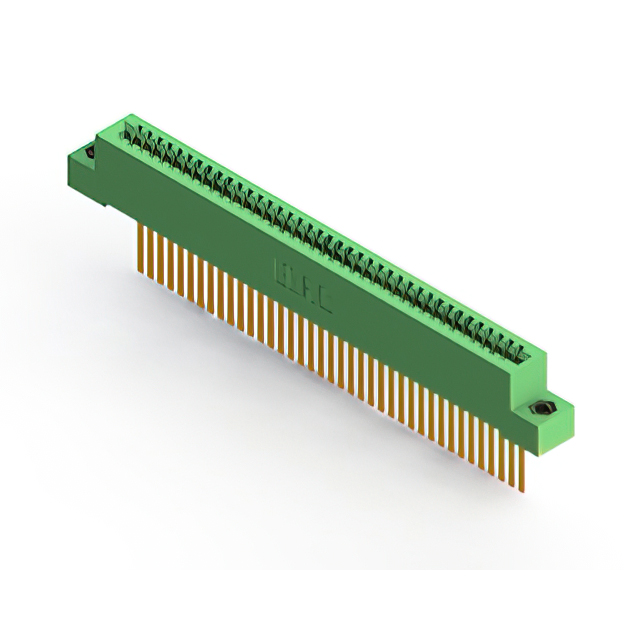

EDAC Inc. 842-039-544-107	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	1	Single	Wire Wrap	Flush Mount M3 Threaded Insert Top Opening	39	125 °C	-40 C	Cantilever	Through Hole	0.1 "	2.54 mm	39	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Female

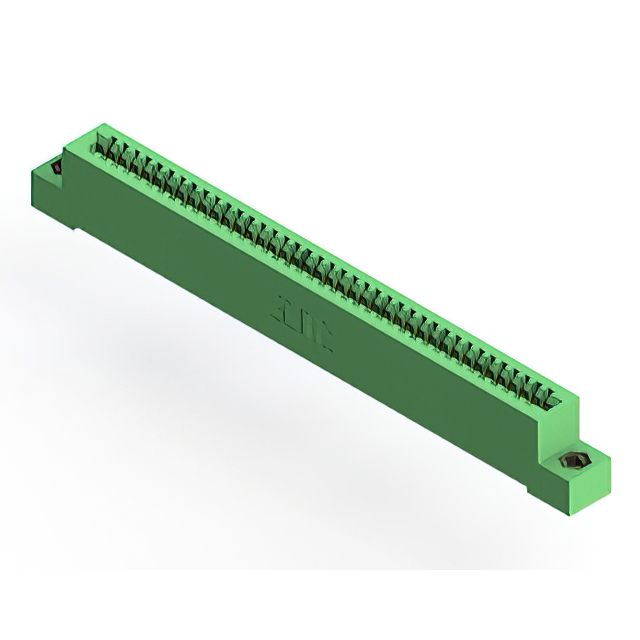

EDAC Inc. 842-039-521-108	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	1	Single	Solder	4-40 Flush Mount Threaded Insert Top Opening	39	125 °C	-40 C	Cantilever	Through Hole	0.1 "	2.54 mm	39	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Female
EDAC Inc. 842-039-523-102	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	1	Single	Solder	Flush Mount Top Opening Unthreaded	39	125 °C	-40 C	Cantilever	Through Hole	0.1 "	2.54 mm	39	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Female	0.128 "	3.25 mm
EDAC Inc. 842-039-542-112	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	1	Single	Wire Wrap	Flush Mount Side Opening Unthreaded	39	125 °C	-40 C	Cantilever	Through Hole	0.1 "	2.54 mm	39	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Female	0.128 "	3.25 mm
EDAC Inc. 842-039-520-101	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	1	Single	Solder		39	125 °C	-40 C	Cantilever	Through Hole	0.1 "	2.54 mm	39	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Female

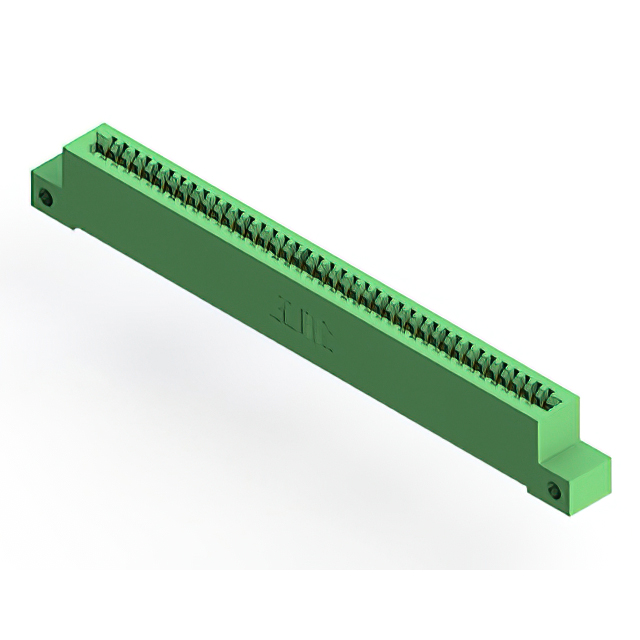

EDAC Inc. 842-039-521-112	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	1	Single	Solder	Flush Mount Side Opening Unthreaded	39	125 °C	-40 C	Cantilever	Through Hole	0.1 "	2.54 mm	39	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Female	0.128 "	3.25 mm

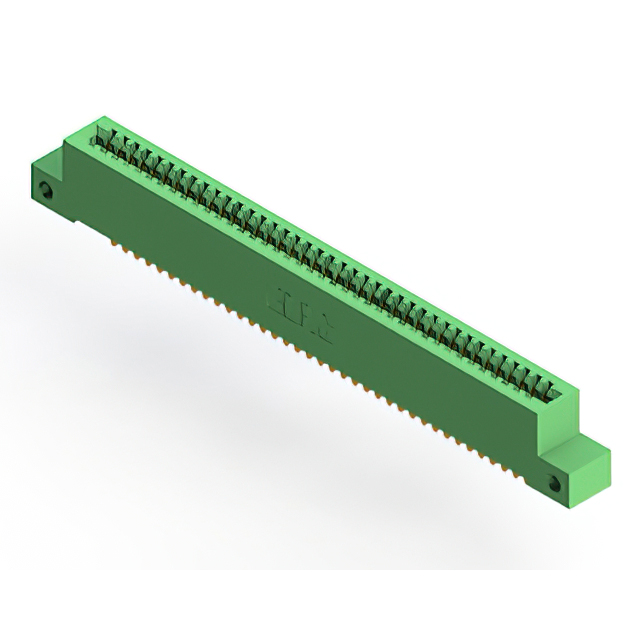

EDAC Inc. 842-039-500-112	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	1	Single	Solder Eyelet(s)	Flush Mount Side Opening Unthreaded	39	125 °C	-40 C	Cantilever	Through Hole	0.1 "	2.54 mm	39	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	0.25 Ám	10 Áin	Gold	Green	Female	0.128 "	3.25 mm
