FAN256 Series

Catalog

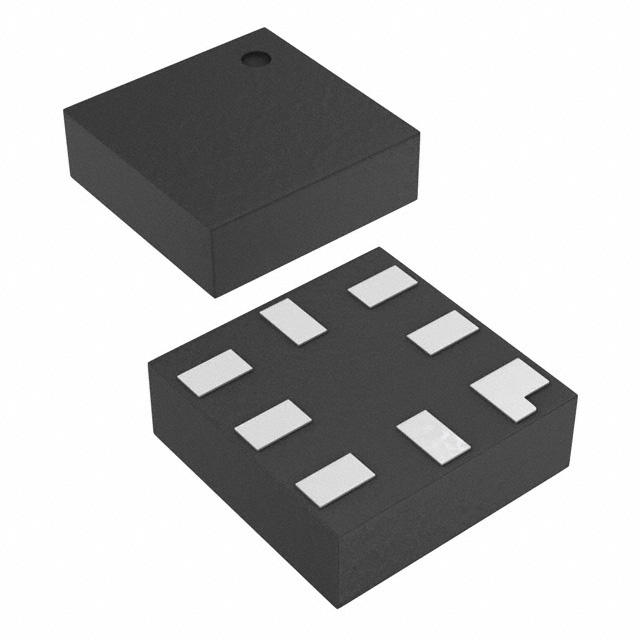

IC COMPARATOR 2 GEN PUR 8MICROPK

Part	Output Type	Current - Quiescent (Max) [Max]	Current - Input Bias (Max)	Mounting Type	Voltage - Input Offset (Max)	Package / Case	Propagation Delay (Max) [Max]	Number of Elements	Hysteresis	Type	CMRR, PSRR (Typ)	Supplier Device Package	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Operating Temperature [Max]	Operating Temperature [Min]
ON Semiconductor FAN256L8X	Push-Pull Rail-to-Rail	17 µA	10 pA	Surface Mount	15 mV	8-UFQFN	400 ns	2	4 mV	General Purpose	68 dB 80 dB	8-MicroPak™	2.75 V 5.5 V	-1.6 V 1.6 V	85 °C	-40 °C
ON Semiconductor FAN256L8X-F106	Push-Pull Rail-to-Rail	17 µA	10 pA	Surface Mount	15 mV	8-UFQFN	400 ns	2	4 mV	General Purpose	68 dB 80 dB	8-MicroPak™	2.75 V 5.5 V	-1.6 V 1.6 V	85 °C	-40 °C
