QV8025NH5RP Series

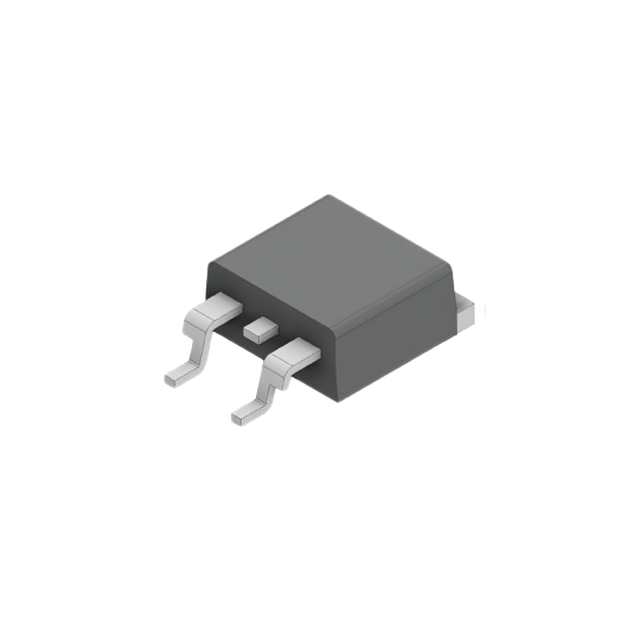

25A High Tj Alternistor TO-263

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

25A High Tj Alternistor TO-263

Part	Supplier Device Package	Triac Type	Configuration	Voltage - Off State	Mounting Type	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)
Littelfuse/Commercial Vehicle Products QV8025NH5RP	TO-263 (D2PAK)	Standard	Single	800 V	Surface Mount	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	50 mA	25 A	250 A

Catalog

25A High Tj Alternistor TO-263

Key Features

• High TJ of 150°C

• Voltage capability of 800 V

• Surge capability of 250 A at 60Hz half cycle

• Mechanically and thermally robust TO-220 clip-attach assembly

• High dv/dt up to 2000V/μs

• Internally-isolated TO-220 package

• Halogen-free and RoHScompliant

• Recognized to UL 1557 as an Electrically Isolated Semiconductor Device

Description

This 25 A high temperature Alternistor TRIAC, offered in TO-220AB, TO-220 isolated, and TO-263 packages, has 150 °C maximum junction temperature (TJ) and 250 A ITSM (60 Hz). This series enables easier thermal management and higher surge handling capability in AC power control applications such as heater control, motor speed control, lighting controls, and static switching relays. Alternistor TRIAC operates in quadrants I, II, and III, and offers high performance in applications requiring high commutation capability.
