EEC-A0 Series

Catalog

CAP 3.3F -20% +80% 2.5V T/H

Part	Voltage - Rated	Tolerance [Max]	Tolerance [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Termination	ESR (Equivalent Series Resistance)	Package / Case	Capacitance	Lead Spacing	Lead Spacing	Lifetime @ Temp.
Panasonic Industrial Automation Sales EEC-A0EL335	2.5 V	80 %	-20 %	70 °C	-25 °C	0.492 in	12.5 mm	0.984 "	25 mm	Through Hole	PC Pins	300 mOhm	Radial Can	3.3 F	5 mm	0.197 in	1000 Hrs
Panasonic Industrial Automation Sales EEC-A0EL106	2.5 V	80 %	-20 %	70 °C	-25 °C	0.709 "	18 mm	1.496 in	38 mm	Through Hole	PC Pins	100 mOhm	Radial Can	10 F	7.5 mm	0.295 in	1000 Hrs

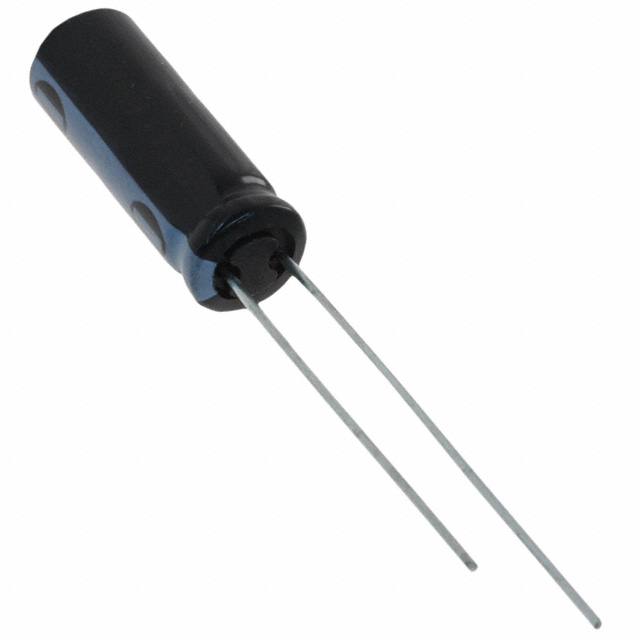

Panasonic Industrial Automation Sales EEC-A0EL105	2.5 V	80 %	-20 %	70 °C	-25 °C	0.315 "	8 mm	0.945 in	24 mm	Through Hole	PC Pins	1 Ohm	Radial Can	1 F	3.5 mm	0.138 in	1000 Hrs
