CX4 Series

Catalog

CONN TERM BLK FEED THRU 10-24AWG

Part	Type	Current - IEC	Current - UL	Number of Levels	Terminal - Width [y]	Termination Style	Material - Insulation	Color	Voltage - UL	Number of Positions	Stripping Length	Voltage - IEC	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]

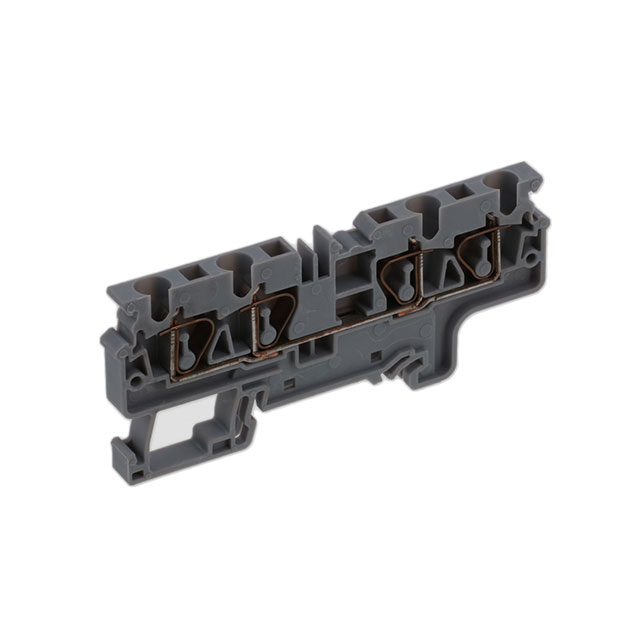

Altech Corporation CX4/4	Feed Through	32 A	30 A	1	6 mm	Push In Spring	Polyamide (PA66) Nylon 6/6	Gray	600 V	4	10 mm	1 kV	0.2 mm˛	4 mm˛	10 AWG	24 AWG
