DLCBS5 Series

Catalog

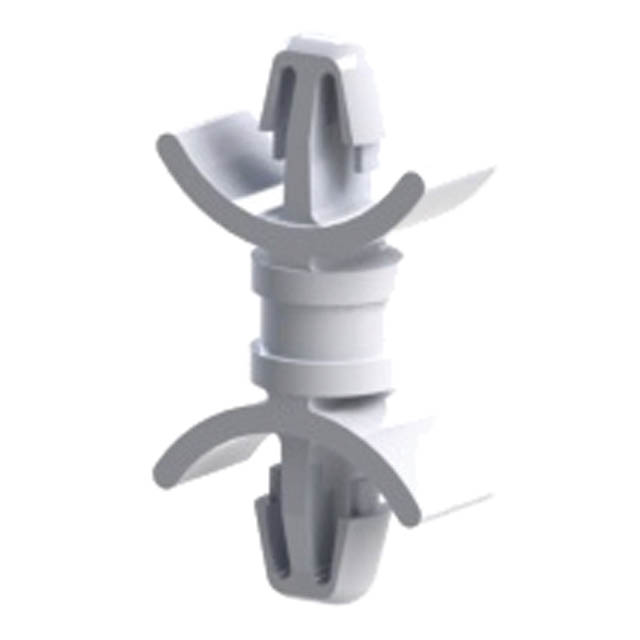

BRD SPT SNAP LOCK NYLON 1/4"

Part	Between Board Height	Between Board Height	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Panel Thickness [Min]	Support Panel Thickness [Min]	Support Panel Thickness [Max]	Support Panel Thickness [Max]	Holding Type	Features	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Mounting Type	Material	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Overall	Length - Overall	Between Board Height	Length - Overall
Essentra Components DLCBS5-4-01	6.35 mm	0.25 in	3.5 mm	0.138 "	0.031 in	0.79 mm	0.078 in	1.98 mm	Snap Lock	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm	Snap Lock	Nylon	3.5 mm	0.138 in	0.689 in	17.5 mm
Essentra Components DLCBS5-10-01	0.626 "	15.9 mm	3.5 mm	0.138 "	0.031 in	0.79 mm	0.078 in	1.98 mm	Snap Lock	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm	Snap Lock	Nylon	3.5 mm	0.138 in				1.063 in	27 mm
Essentra Components DLCBS5-3-01	0.189 in	4.8 mm	3.5 mm	0.138 "	0.031 in	0.79 mm	0.078 in	1.98 mm	Snap Lock	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm	Snap Lock	Nylon	3.5 mm	0.138 in	0.626 in	15.9 mm
Essentra Components DLCBS5-8-01	0.5 in	12.7 mm	3.5 mm	0.138 "	0.031 in	0.79 mm	0.078 in	1.98 mm	Snap Lock	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm	Snap Lock	Nylon	3.5 mm	0.138 in			0.9375 "	0.938 in	23.83 mm	0.5 in
Essentra Components DLCBS5-9-01	0.563 in	14.3 mm	3.5 mm	0.138 "	0.031 in	0.79 mm	0.078 in	1.98 mm	Snap Lock	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm	Snap Lock	Nylon	3.5 mm	0.138 in			1 "		25.4 mm	9 "	1 "
Essentra Components DLCBS5-7-01	0.438 in	11.13 mm	3.5 mm	0.138 "	0.031 in	0.79 mm	0.078 in	1.98 mm	Snap Lock	Winged	0.79 mm	0.031 in	0.078 "	1.98 mm	Snap Lock	Nylon	3.5 mm	0.138 in	0.874 in	22.2 mm				0.4375 "
