B72225T Series

Catalog

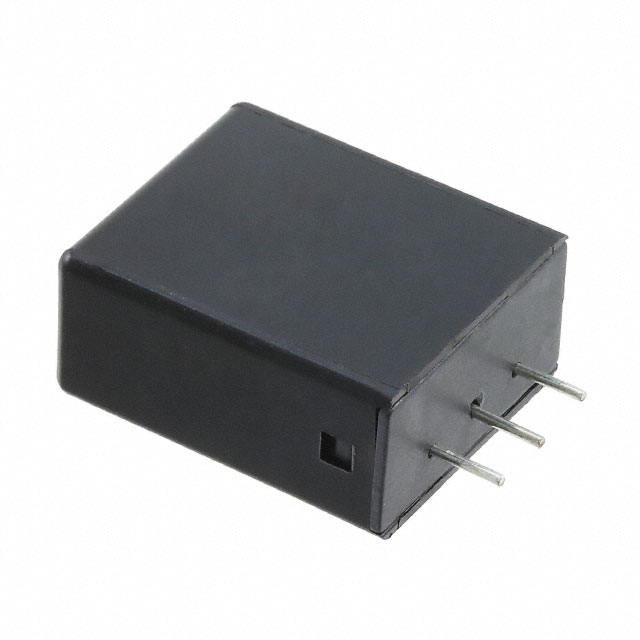

VARISTOR 240V 20KA RADIAL BOX

Part	Varistor Voltage (Max) [Max]	Maximum AC Volts [Max]	Number of Circuits	Maximum DC Volts [Max]	Capacitance @ Frequency	Varistor Voltage (Min) [Min]	Energy	Mounting Type	Varistor Voltage (Typ)	Features	Current - Surge	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Max)
EPCOS - TDK Electronics B72225T4151K101	264 V	150 V	1	200 V	1740 pF	216 V	215 J	Through Hole	240 V	Thermally Protected	20 kA	Radial Box - 3 Lead	85 C	-40 ¯C
EPCOS - TDK Electronics B72225T4141K101		140 V	1	180 V		198 V	195 J	Through Hole	220 V	Thermally Protected	20 kA	Radial Box - 3 Lead	85 C	-40 ¯C	242 V
EPCOS - TDK Electronics B72225T4231K101	396 V	230 V	1	300 V	1140 pF	324 V	315 J	Through Hole	360 V	Thermally Protected	20 kA	Radial Box - 3 Lead	85 C	-40 ¯C
EPCOS - TDK Electronics B72225T4381K101		385 V	1	505 V	675 pF	558 V	600 J	Through Hole	620 V	Thermally Protected	20 kA	Radial Box - 3 Lead	85 C	-40 ¯C
EPCOS - TDK Electronics B72225T4211K101	363 V	210 V	1	270 V	1245 pF	297 V	290 J	Through Hole	330 V	Thermally Protected	20 kA	Radial Box - 3 Lead	85 C	-40 ¯C
EPCOS - TDK Electronics B72225T4131K101	225.5 V	130 V	1	170 V	2010 pF	184.5 V	185 J	Through Hole	205 V	Thermally Protected	20 kA	Radial Box - 3 Lead	85 C	-40 ¯C
EPCOS - TDK Electronics B72225T4351K101	616 V	350 V	1	460 V	1 kHz 750 pF	504 V	495 J	Through Hole	560 V	Thermally Protected	20 kA	Radial Box - 3 Lead	85 C	-40 ¯C
EPCOS - TDK Electronics B72225T4321K101	561 V	320 V	1	420 V	1 kHz 750 pF	459 V	445 J	Through Hole	510 V	Thermally Protected	20 kA	Radial Box - 3 Lead	85 C	-40 ¯C
