5199/15C Series

Catalog

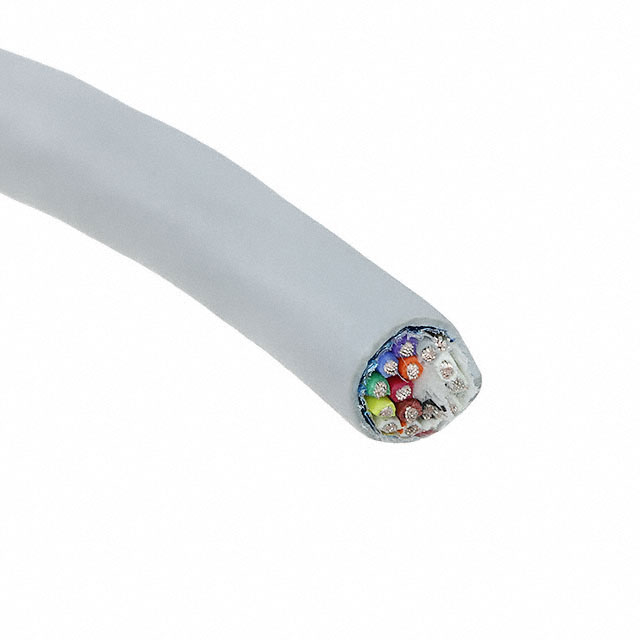

CABLE 15COND 22AWG SHLD 1000'

Part	Shield Coverage	Shield Material	Jacket Color	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Conductor Material	Number of Conductors	Features	Conductor Insulation	Wire Gauge	Shield Type	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Length [x]	Length [x]
ALPHA WIRE 5199/15C SL001	100 %	Aluminum	Slate	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	300 VDC	Copper Tinned	15	Biological Compatibility Drain Wire Rip Cord	Poly-Vinyl Chloride (PVC)	22 AWG	Foil	Multi-Conductor	-35 °C	105 ░C	304.8 m	1000 ft	ISO 10993	7.7 mm	0.303 in	30 AWG	7	Communication Control
ALPHA WIRE 5199/15C SL199	100 %	Aluminum	Slate	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	300 VDC	Copper Tinned	15	Biological Compatibility Drain Wire Rip Cord	Poly-Vinyl Chloride (PVC)	22 AWG	Foil	Multi-Conductor	-35 °C	105 ░C			ISO 10993	7.7 mm	0.303 in	30 AWG	7	Communication Control
ALPHA WIRE 5199/15C SL002	100 %	Aluminum	Slate	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	300 VDC	Copper Tinned	15	Biological Compatibility Drain Wire Rip Cord	Poly-Vinyl Chloride (PVC)	22 AWG	Foil	Multi-Conductor	-35 °C	105 ░C	152.4 m	500 ft	ISO 10993	7.7 mm	0.303 in	30 AWG	7	Communication Control
ALPHA WIRE 5199/15C SL005	100 %	Aluminum	Slate	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	300 VDC	Copper Tinned	15	Biological Compatibility Drain Wire Rip Cord	Poly-Vinyl Chloride (PVC)	22 AWG	Foil	Multi-Conductor	-35 °C	105 ░C			ISO 10993	7.7 mm	0.303 in	30 AWG	7	Communication Control	100 ft	30.5 m
