HPH2-A Series
Manufacturer: Adam Tech
Beta
⌘K

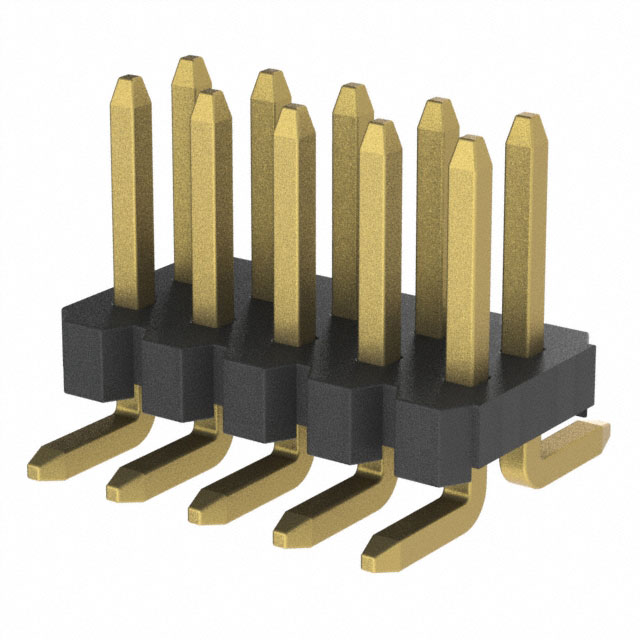

CONN UNSHROUDED HEADER HDR 10 POS 1.27MM SOLDER ST SMD BAG
| Part | Contact Finish Thickness - Post | Termination | Voltage Rating | Contact Finish - Post | Material Flammability Rating | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Mounting Type | Contact Length - Mating | Contact Length - Mating | Fastening Type | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Contact Material | Contact Type | Contact Shape | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Insulation Color | Shrouding | Connector Type | Number of Positions | Number of Rows [custom] | Insulation Height [z] | Insulation Height [z] | Insulation Material | Overall Contact Length | Overall Contact Length | Contact Length - Post [x] | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Flash | Solder | 250 VAC | Gold | UL94 V-0 | Gold | 1.27 mm | 0.05 in | Surface Mount | 3 mm | 0.118 in | Push-Pull | All | 0.05 in | 1.27 mm | Brass | Male Pin | Square | 3 A | -55 C | 105 ░C | Flash | Black | Unshrouded | Header | 10 | 2 | 1 mm | 0.039 in | |||||
 Adam Tech | Flash | Solder | 250 VAC | Gold | UL94 V-0 | Gold | 1.27 mm | 0.05 in | Through Hole | 3 mm | 0.118 in | Push-Pull | All | 0.05 in | 1.27 mm | Brass | Male Pin | Square | -40 C | 105 ░C | Flash | Black | Unshrouded | Header | 18 | 2 | 1 mm | 0.039 in | Thermoplastic | 0.248 in | 6.3 mm | 0.091 " | 2.3 mm | |
 Adam Tech | Flash | Solder | 250 VAC | Gold | UL94 V-0 | Gold | 1.27 mm | 0.05 in | Through Hole | 3 mm | 0.118 in | Push-Pull | All | 0.05 in | 1.27 mm | Brass | Male Pin | Square | -40 C | 105 ░C | Flash | Black | Unshrouded | Header | 10 | 2 | 1 mm | 0.039 in | Thermoplastic | 0.248 in | 6.3 mm | 0.091 " | 2.3 mm | |
 Adam Tech | Flash | Solder | 250 VAC | Gold | UL94 V-0 | Gold | 1.27 mm | 0.05 in | Through Hole | 3 mm | 0.118 in | Push-Pull | All | 0.05 in | 1.27 mm | Brass | Male Pin | Square | -40 C | 105 ░C | Flash | Black | Unshrouded | Header | 6 | 2 | 1 mm | 0.039 in | Thermoplastic | 0.248 in | 6.3 mm | 0.091 " | 2.3 mm | |
 Adam Tech | Flash | Solder | 250 VAC | Gold | UL94 V-0 | Gold | 1.27 mm | 0.05 in | Through Hole | 3 mm | 0.118 in | Push-Pull | All | 0.05 in | 1.27 mm | Brass | Male Pin | Square | -40 C | 105 ░C | Flash | Black | Unshrouded | Header | 16 | 2 | 1 mm | 0.039 in | Thermoplastic | 0.248 in | 6.3 mm | 0.091 " | 2.3 mm |
