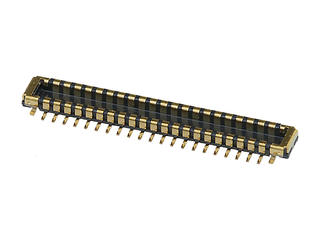

SlimStack Board-to-Board Plug, 0.35mm Pitch, SSB RP Series, 0.60 or 0.70mm Mated Height, 2.00mm Mated Width, 10 Circuits, Armor Nail, 0.15mm Fitting Nail Width
SlimStack Board-to-Board Plug, 0.35mm Pitch, SSB RP Series, 0.60 or 0.70mm Mated Height, 2.00mm Mated Width, 10 Circuits, Armor Nail, 0.15mm Fitting Nail Width
SlimStack Board-to-Board Plug, 0.35mm Pitch, SSB RP Series, 0.60 or 0.70mm Mated Height, 2.00mm Mated Width, 10 Circuits, Armor Nail, 0.15mm Fitting Nail Width
| Part | Mounting Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Features | Connector Type | Contact Finish | Height Above Board [z] | Height Above Board [z] | Pitch [x] | Pitch [x] | Mated Stacking Heights | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Surface Mount | 30 | 4 Áin | 0.1 Ám | Pick and Place Solder Retention | Outer Shroud Contacts Plug | Gold | 0.48 mm | 0.019 " | 0.35 mm | 0.014 in | 0.6 mm | 2 | |

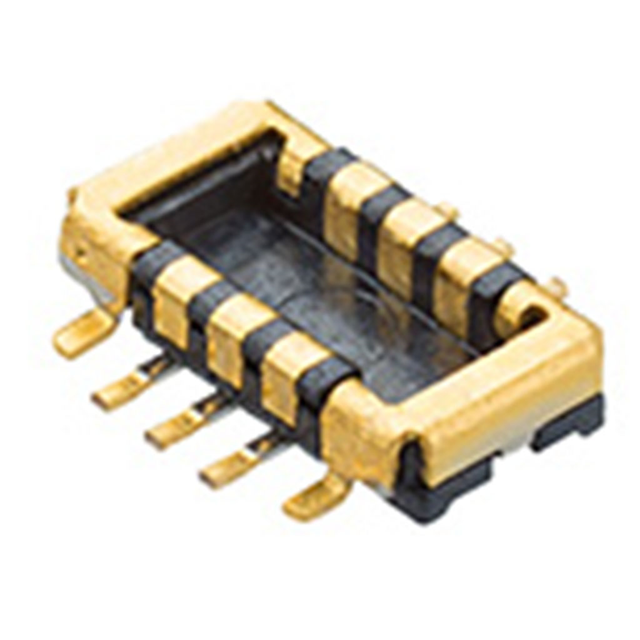

 Molex | Surface Mount | 8 | 4 Áin | 0.1 Ám | Solder Retention | Gold | 0.48 mm | 0.019 " | 0.35 mm | 0.014 in | 0.6 mm | 2 | ||

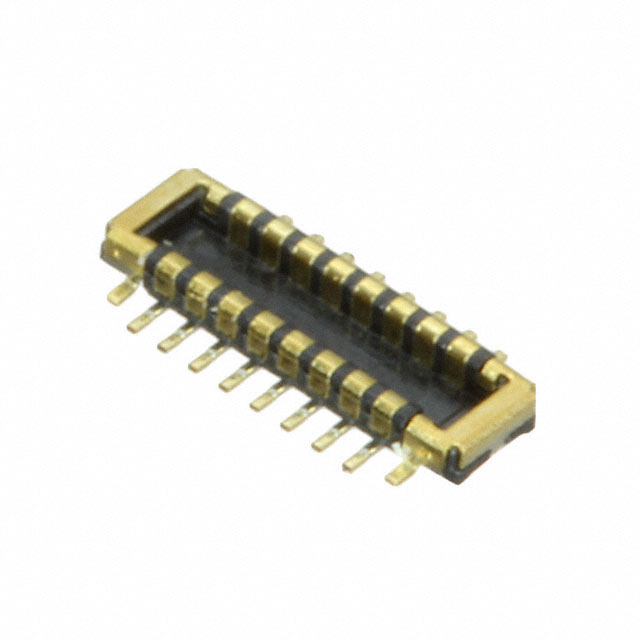

 Molex | Surface Mount | Solder Retention | Outer Shroud Contacts Plug | Gold | 0.48 mm | 0.019 " | 0.35 mm | 0.014 in | 0.6 mm | 2 | 16 | |||
Molex | Surface Mount | 54 | Solder Retention | Outer Shroud Contacts Plug | Gold | 0.48 mm | 0.019 " | 0.35 mm | 0.014 in | 0.6 mm | 2 | |||

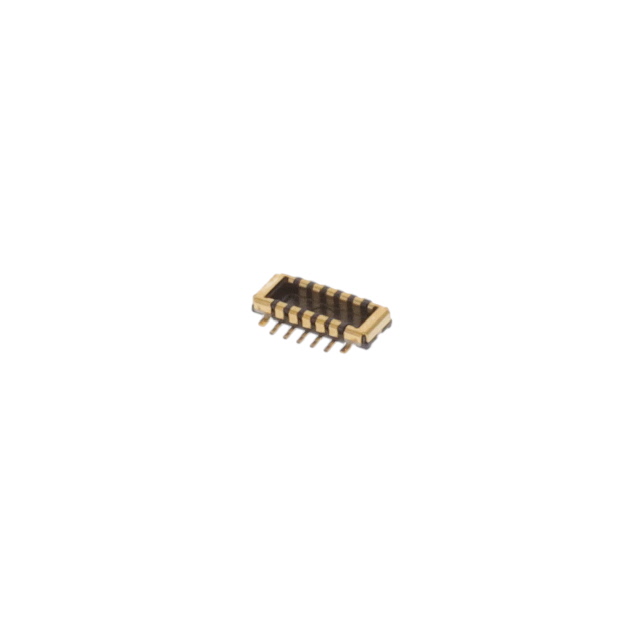

 Molex | Surface Mount | 10 | 4 Áin | 0.1 Ám | Pick and Place Solder Retention | Outer Shroud Contacts Plug | Gold | 0.48 mm | 0.019 " | 0.35 mm | 0.014 in | 0.6 mm | 2 | |

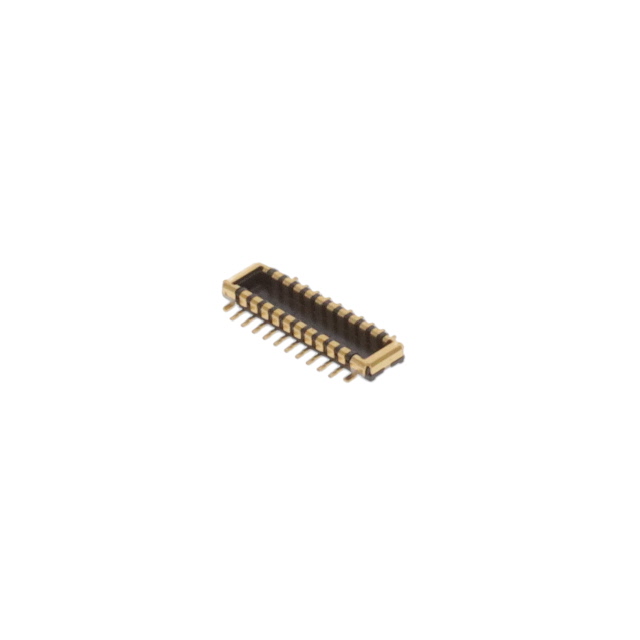

 Molex | Surface Mount | 20 | 4 Áin | 0.1 Ám | Pick and Place Solder Retention | Outer Shroud Contacts Plug | Gold | 0.48 mm | 0.019 " | 0.35 mm | 0.014 in | 0.6 mm | 2 | |

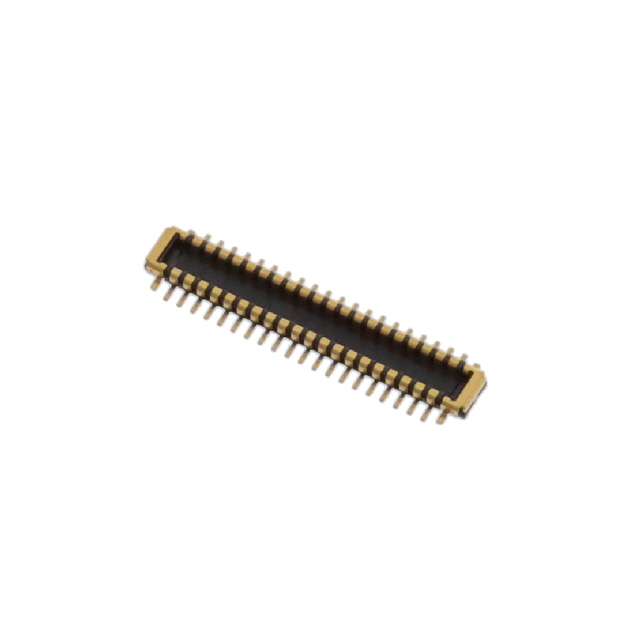

 Molex | Surface Mount | 40 | 4 Áin | 0.1 Ám | Pick and Place Solder Retention | Outer Shroud Contacts Plug | Gold | 0.48 mm | 0.019 " | 0.35 mm | 0.014 in | 0.6 mm | 2 | |
Molex | Surface Mount | 6 | 4 Áin | 0.1 Ám | Pick and Place Solder Retention | Outer Shroud Contacts Plug | Gold | 0.48 mm | 0.019 " | 0.35 mm | 0.014 in | 0.6 mm | 2 | |

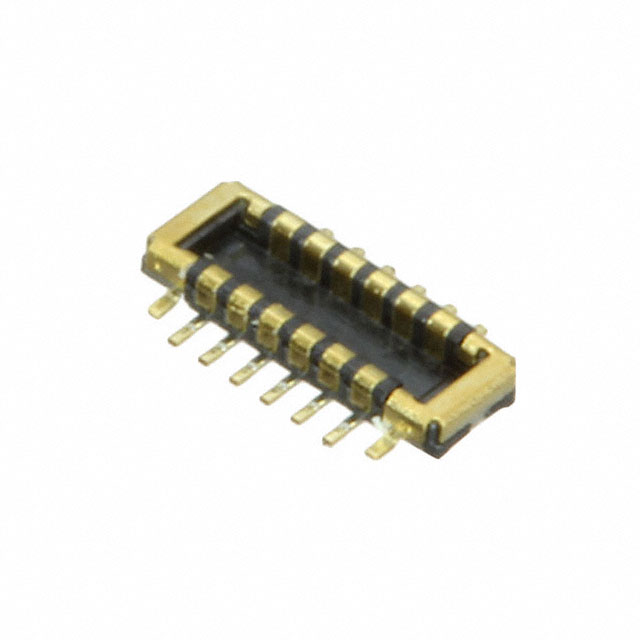

 Molex | Surface Mount | 12 | Solder Retention | Outer Shroud Contacts Plug | Gold | 0.48 mm | 0.019 " | 0.35 mm | 0.014 in | 0.6 mm | 2 | |||
Molex | Surface Mount | 14 | 4 Áin | 0.1 Ám | Pick and Place Solder Retention | Outer Shroud Contacts Plug | Gold | 0.48 mm | 0.019 " | 0.35 mm | 0.014 in | 0.6 mm | 2 |
