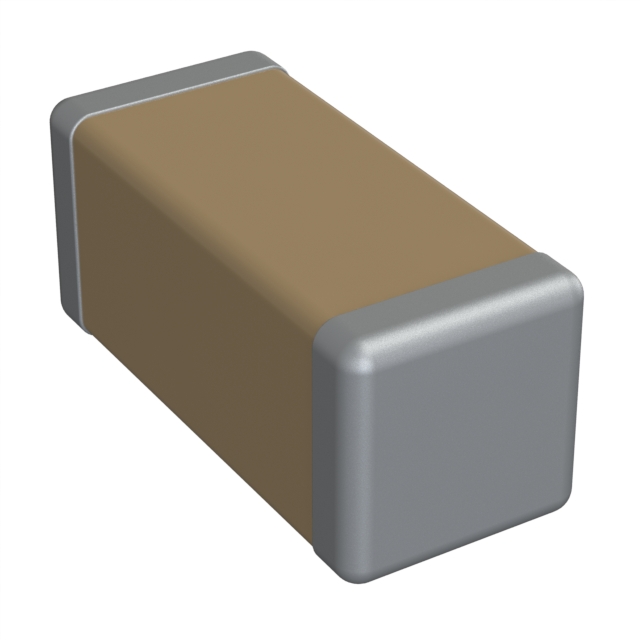

1808JA25 Series
Manufacturer: Knowles Johanson Manufacturing
Catalog
250V 390PF ±1% MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT ROHS
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Capacitance | Temperature Coefficient | Package / Case | Package / Case | Voltage - Rated | Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Applications | Mounting Type | Ratings | Size / Dimension | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Knowles Johanson Manufacturing | -55 °C | 125 °C | 1 % | 390 pF | C0G NP0 | 1808 | 4520 Metric | 250 VAC | DC Annex H High Voltage Humidity 3B Annex I | 0.177 in | 0.079 in | 4.5 mm | 2 mm | Safety | MLCC Surface Mount | |||
Knowles Johanson Manufacturing | -55 °C | 125 °C | 10 % | 270 pF | C0G NP0 (1B) | 1808 | 4520 Metric | 250 VAC | DC Annex H High Voltage Humidity 3B Annex I | 0.177 in | 0.079 in | 4.5 mm | 2 mm | Automotive Safety | MLCC Surface Mount | AEC-Q200 | ||
Knowles Johanson Manufacturing | -55 °C | 125 °C | 2 % | 120 pF | C0G NP0 (1B) | 1808 | 4520 Metric | 250 VAC | DC Annex H High Voltage Humidity 3B Annex I | 0.177 in | 0.079 in | 4.5 mm | 2 mm | Automotive Safety | MLCC Surface Mount | AEC-Q200 | ||
Knowles Johanson Manufacturing | -55 °C | 125 °C | 0.25 pF | 6.8 pF | C0G NP0 (1B) | 1808 | 4520 Metric | 250 VAC | DC Annex H High Voltage Humidity 3B Annex I | 0.189 " | 0.079 in | 4.8 mm | 2 mm | Automotive Safety | MLCC Surface Mount | AEC-Q200 X1 Y2 | ||
Knowles Johanson Manufacturing | -55 °C | 125 °C | 5 % | 10 pF | C0G NP0 (1B) | 1808 | 4520 Metric | 250 VAC | DC Annex H High Voltage Humidity 3B Annex I | 0.177 in | 0.079 in | 4.5 mm | 2 mm | Automotive Safety | MLCC Surface Mount | AEC-Q200 | ||
Knowles Johanson Manufacturing | -55 °C | 125 °C | 1 % | 330 pF | C0G NP0 (1B) | 1808 | 4520 Metric | 250 VAC | DC Annex H High Voltage Humidity 3B Annex I | 0.177 in | 0.079 in | 4.5 mm | 2 mm | Automotive Safety | MLCC Surface Mount | AEC-Q200 | ||
Knowles Johanson Manufacturing | -55 °C | 125 °C | 20 % | 180 pF | X7R | 1808 | 4520 Metric | 250 VAC | DC Annex H High Voltage Humidity 3B Annex I | 0.177 in | 0.079 in | 4.5 mm | 2 mm | Safety | MLCC Surface Mount | X2 | ||
Knowles Johanson Manufacturing | -55 °C | 125 °C | 2 % | 12 pF | C0G NP0 | 1808 | 4520 Metric | 250 VAC | DC Annex H High Voltage Humidity 3B Annex I | 0.189 " | 0.079 in | 4.8 mm | 2 mm | Safety | MLCC Surface Mount | |||
 Knowles Johanson Manufacturing | -55 °C | 125 °C | 20 % | 2700 pF | X7R | 1808 | 4520 Metric | 250 VAC | DC Annex H High Voltage Humidity 3B Annex I | 0.177 in | 0.079 in | 4.5 mm | 2 mm | Safety | MLCC Surface Mount | |||
Knowles Johanson Manufacturing | -55 °C | 125 °C | 20 % | 1800 pF | X7R | 1808 | 4520 Metric | 250 VAC | DC Annex H High Voltage Humidity 3B Annex I | Automotive Safety | MLCC Surface Mount | AEC-Q200 X1 Y2 | 4.95mm x 2.00mm | 0.195" L x 0.079" W |
