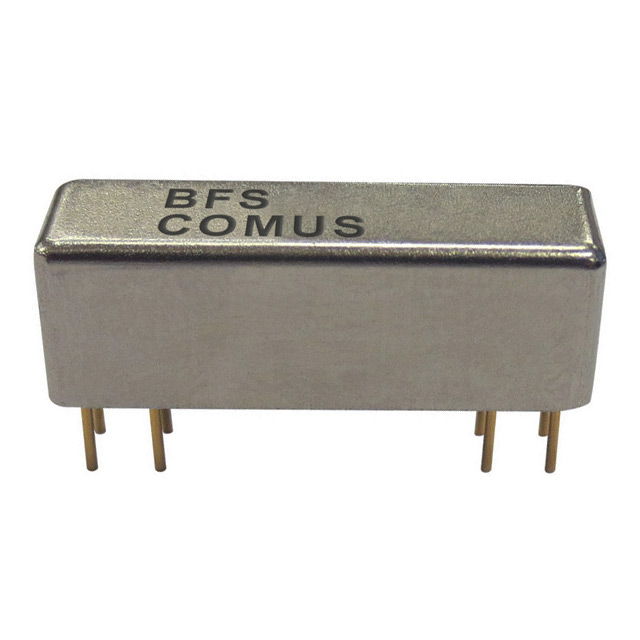

BFS-1 Series
Manufacturer: Comus International
Beta
⌘K
RELAY REED SPST .5A 12V
| Part | Coil Resistance | Mounting Type | Coil Voltage | Release Time | Contact Rating (Current) | Contact Material | Switching Voltage DC (Max) | Features | Must Release Voltage | Coil Type | Operate Time | Operating Temperature (Max) | Operating Temperature (Min) | Coil Current | Termination Style | Must Operate Voltage | Form A Count | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Comus International | 1.5 kOhms | Through Hole | 12 VAC | 0.1 ms | 500 mA | Ruthenium (Ru) | 200 VDC | Electrostatic Shield | 1 VDC | Non Latching | 0.5 ms | 85 °C | -25 °C | 8 mA | PC Pin | 9 VDC | 1 | SPST-NO |
