PKB Series

Catalog

CBL TIE LOCKING CLR 50LBS 11.42"

Part	Mounting Type	Wire/Cable Tie Type	Tensile Strength	Tensile Strength	Material	Length - Approximate	Color	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Actual	Length - Actual	Length - Actual	Width [x]	Width [x]	Length - Approximate [x]	Width	Width	Features	Length - Actual [x]	Length - Actual [x]	Length - Actual [x]	Bundle Diameter [diameter]
Phoenix Contact 1005499	Free Hanging (In-Line)	Locking Standard	22.68 kg	50 lbs	Polyamide (PA) Nylon	11.5 in	Clear	2.99 in	75.95 mm	290 mm	0.951 ft	11.42 in	0.19 in	4.83 mm
Phoenix Contact 1005460	Free Hanging (In-Line)	Locking Standard	18.14 kg	40 lbs	Polyamide (PA) Nylon		Clear	1.38 in	35 mm	140 mm	0.459 ft	5.51 in			5.5 in	0.141 in	3.58 mm
Phoenix Contact 1005525	Free Hanging (In-Line)	Locking Standard	18.14 kg	40 lbs	Polyamide (PA) Nylon		Black	1.38 in	35 mm	140 mm	0.459 ft	5.51 in			5.5 in	0.141 in	3.58 mm	UV Resistant

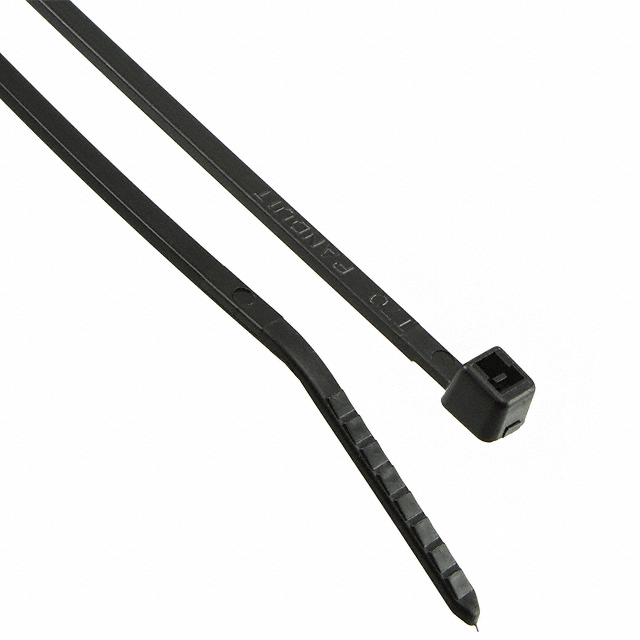

Phoenix Contact 1005512	Free Hanging (In-Line)	Locking Standard	8.16 kg	18 lbs	Polyamide (PA) Nylon		Black	0.86 "	22 mm				0.098 in	2.5 mm	4 in			UV Resistant	100 mm	0.328 ft	3.93 in

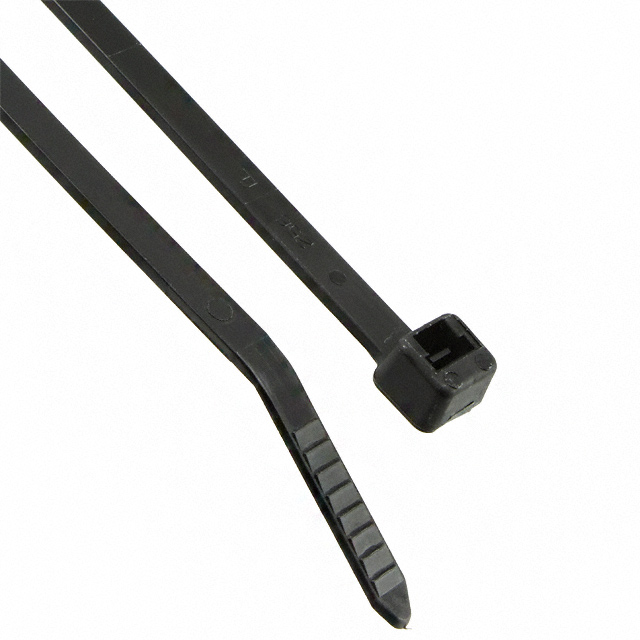

Phoenix Contact 1005554	Free Hanging (In-Line)	Locking Standard	22.68 kg	50 lbs	Polyamide (PA) Nylon	11.5 in	Black	2.99 in	75.95 mm	290 mm	0.951 ft	11.42 in	0.19 in	4.83 mm				UV Resistant
Phoenix Contact 1005509	Free Hanging (In-Line)	Locking Standard	22.68 kg	50 lbs	Polyamide (PA) Nylon	14.5 in	Clear		4.02 in				0.19 in	4.83 mm					370 mm	1.214 ft		102 mm

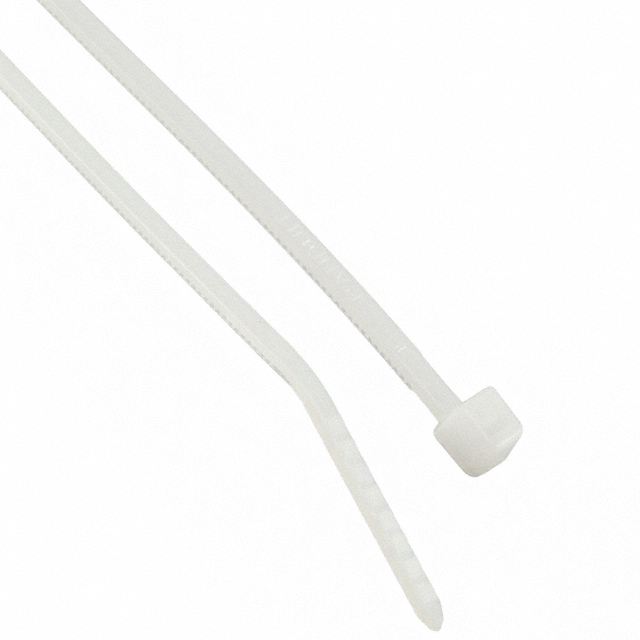

Phoenix Contact 1005457	Free Hanging (In-Line)	Locking Standard	8.16 kg	18 lbs	Polyamide (PA) Nylon		Clear	0.86 "	22 mm				0.098 in	2.5 mm	4 in				100 mm	0.328 ft	3.93 in
Phoenix Contact 1005486	Free Hanging (In-Line)	Locking Standard	8.16 kg	18 lbs	Polyamide (PA) Nylon	7.75 "	Clear	1.97 in	50 mm				0.098 in	2.5 mm					200 mm	0.656 ft	7.87 "
