FR20203HB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

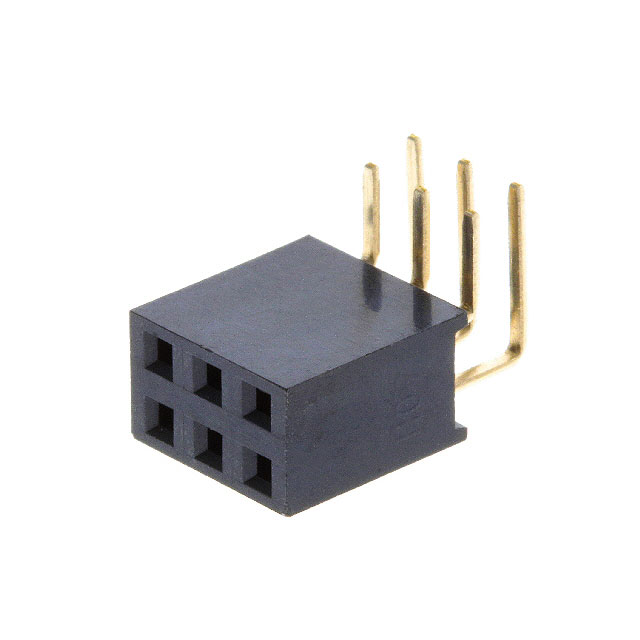

RECEPTACLE, THR, DUAL ROW, .100"
| Part | Contact Material | Contact Shape | Insulation Material | Fastening Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Insulation Height | Insulation Height | Insulation Color | Termination | Contact Finish Thickness - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Pitch - Mating | Pitch - Mating | Number of Rows [custom] | Contact Finish - Mating | Number of Positions Loaded | Connector Type | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Copper | Square | Polyester Polyethylene Terephthalate (PET) | Push-Pull | Female Socket | -40 C | 105 ░C | 6 | 0.197 " | 5 mm | Black | Solder | Flash | 0.114 in | 2.9 mm | 0.1 " | 2.54 mm | 2 | Gold | All | Receptacle | Right Angle Through Hole | 0.1 in | 2.54 mm | IP00 |
