BM6208 Series
Manufacturer: Rohm Semiconductor
Beta
⌘K
IC HALF BRIDGE DRVR 1.5A 54SSOP
| Part | Current - Peak Output | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Package / Case [Max] | Package / Case [Min] | Mounting Type | Interface | Output Configuration | Technology | Features | Rds On (Typ) | Fault Protection | Voltage - Load [Max] | Supplier Device Package | Applications | Load Type | Current - Output / Channel | Operating Temperature [Max] | Operating Temperature [Min] | Supplied Contents | Type | Utilized IC / Part | Contents | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

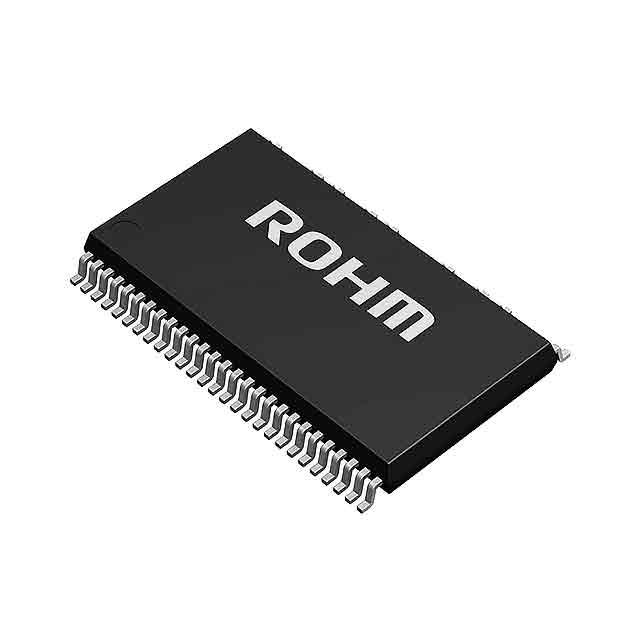

 Rohm Semiconductor | 2.5 A | 16.5 V | 13.5 V | 36 Leads | 11.40mm Width | 54-SOP (0.449 | Surface Mount | Logic | Half Bridge (3) | Power MOSFET | Bootstrap Circuit Status Flag | 2.7 Ohm | Current Limiting Over Temperature UVLO | 400 V | SSOP-A54_36 | AC Motors | Inductive | 1.5 A | 125 ¯C | -20 °C | |||||

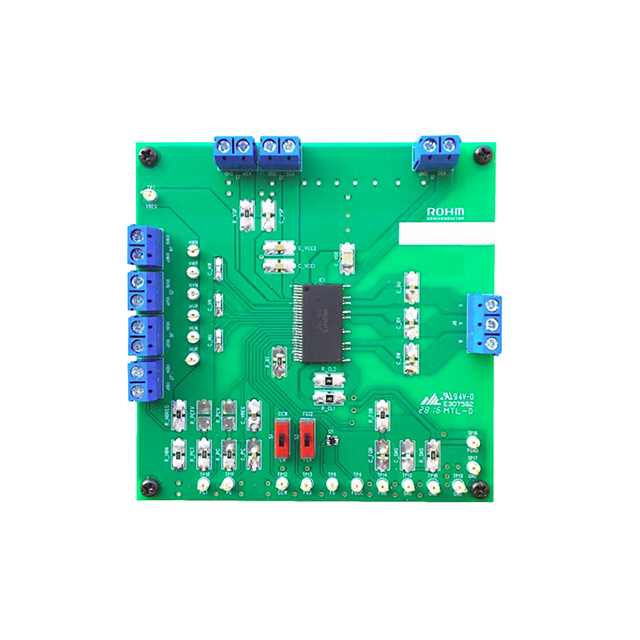

 Rohm Semiconductor | Board(s) | Power Management | BM6208 | Board(s) | Motor Controller/Driver |
