SI4136 Series

Catalog

BOARD EVALUATION FOR SI4136

Part	Supplied Contents	For Use With/Related Products	Contents	Frequency [Min]	Frequency [Max]	Type	Utilized IC / Part	Divider/Multiplier	Supplier Device Package	Number of Circuits	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Input	Ratio - Input:Output	Mounting Type	Package / Case	Output	Frequency - Max [Max]	Ratio - Input:Output [custom]
Skyworks Solutions Inc. SI4136-EVB	Board(s)	SI4136	Board(s)	2.025 GHz 2.3 GHz	2.3 GHz 2.5 GHz	Frequency Synthesizer	Si4136

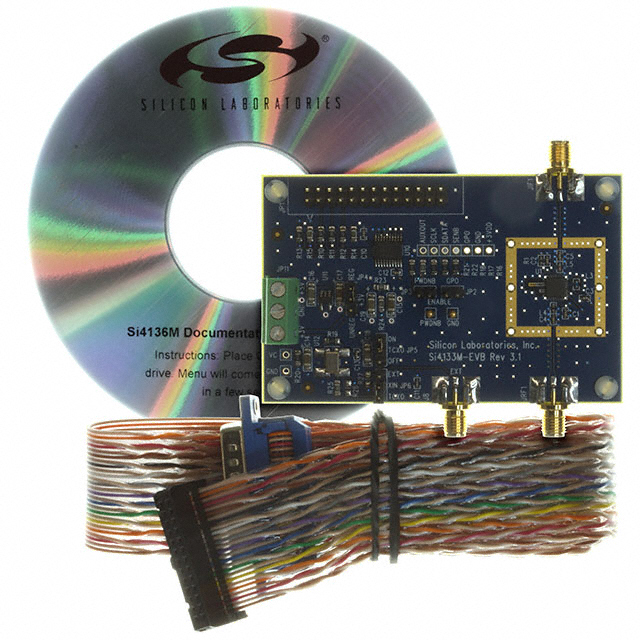

Skyworks Solutions Inc. SI4136M-EVB	Board(s)	SI4136	Board(s)			Synthesizer	Si4136
Skyworks Solutions Inc. SI4136-BM						Frequency Synthesizer		Yes/No	28-QFN (5x5)	1	3.6 V	2.7 V	85 °C	-40 C	Crystal	1:2	Surface Mount	28-VFQFN Exposed Pad	Clock	2.5 GHz
Skyworks Solutions Inc. SI4136-F-GMR						Frequency Synthesizer		Yes/No	28-QFN (5x5)	1	3.6 V	2.7 V	85 °C	-40 C	Crystal		Surface Mount	28-VFQFN Exposed Pad	Clock	2.5 GHz	1:3
Skyworks Solutions Inc. SI4136-F-GM						Frequency Synthesizer		Yes/No	28-QFN (5x5)	1	3.6 V	2.7 V	85 °C	-40 C	Crystal		Surface Mount	28-VFQFN Exposed Pad	Clock	2.5 GHz	1:3
