XYW04028012 Series
Manufacturer: YS TECH USA
Beta
⌘K

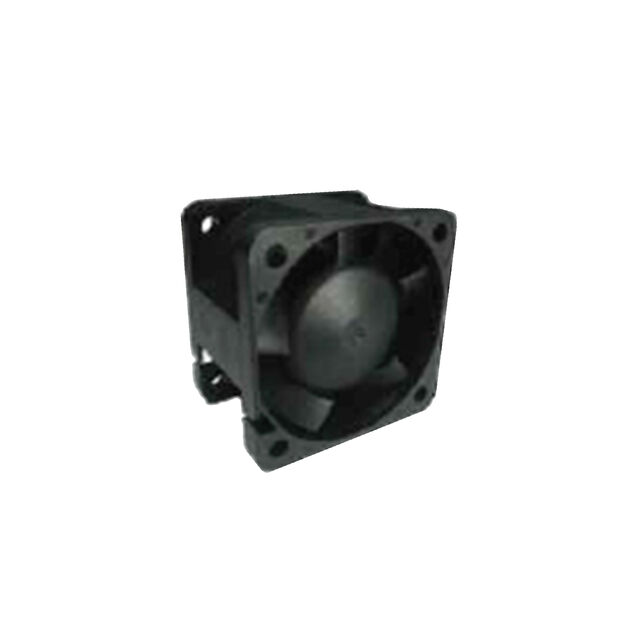

FAN AXIAL 40X28MM 12VDC WIRE
| Part | Material - Blade | Lifetime @ Temp. | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Static Pressure | Static Pressure | Noise | Size / Dimension [x] | Size / Dimension [z] | Air Flow | Air Flow | Power (Watts) | RPM | Voltage - Rated | Fan Type | Bearing Type | Width [x] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YS TECH USA | Polybutylene Terephthalate (PBT) | 65000 Hrs | 1.8 A | 7 V | 13.2 VDC | 622.7 Pa | 2.5 in H2O | 61 dB(A) | 40 mm | 40 mm | 0.943 m³/min | 33.7 CFM | 21.6 W | 23500 RPM | 12 VDC | Tubeaxial | Ball | 28 mm | 2 Wire Leads |
