0307-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

PIN RECEPT .059" PRESS FIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Mounting Hole Diameter	Mounting Hole Diameter	Socket Depth [z]	Socket Depth [z]	Contact Finish	Tail Type	Contact Material	Length - Overall [x]	Length - Overall [x]	Termination	Tail Diameter [diameter]	Tail Diameter [diameter]
Mill-Max Manufacturing Corp. 0307-0-15-15-30-14-04-0	-55 C	125 °C	0.25 Ám	10 Áin	0.64 mm	0.015 "	0.025 in	0.38 mm	0.059 in	1.5 mm	3.81 mm	0.15 in	Gold	Standard Tail	Beryllium Copper	0.293 in	7.44 mm	Press-Fit	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0307-0-15-80-30-84-04-0	-55 C	125 °C	2.54 µm	100 µin	0.64 mm	0.015 "	0.025 in	0.38 mm	0.059 in	1.5 mm	3.81 mm	0.15 in	Tin	Standard Tail	Beryllium Copper	0.293 in	7.44 mm	Press-Fit	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0307-0-15-01-30-27-04-0	-55 C	125 °C	0.76 Ám	30 Áin	0.64 mm	0.015 "	0.025 in	0.38 mm	0.059 in	1.5 mm	3.81 mm	0.15 in	Gold	Standard Tail	Beryllium Copper	0.293 in	7.44 mm	Press-Fit	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0307-0-15-01-30-02-04-0	-55 C	125 °C	2.54 µm	100 µin	0.64 mm	0.015 "	0.025 in	0.38 mm	0.059 in	1.5 mm	3.81 mm	0.15 in	Tin-Lead	Standard Tail	Beryllium Copper	0.293 in	7.44 mm	Press-Fit	0.51 mm	0.02 in

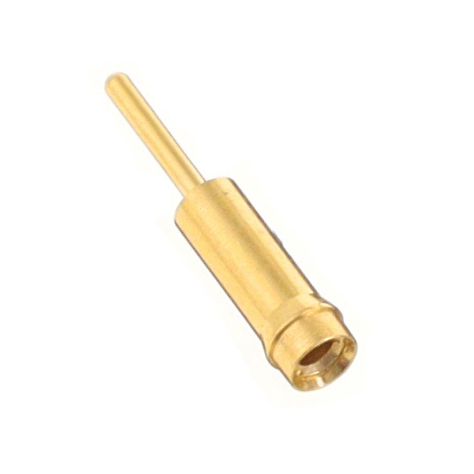

Mill-Max Manufacturing Corp. 0307-0-15-15-30-27-04-0	-55 C	125 °C	0.76 Ám	30 Áin	0.64 mm	0.015 "	0.025 in	0.38 mm	0.059 in	1.5 mm	3.81 mm	0.15 in	Gold	Standard Tail	Beryllium Copper	0.293 in	7.44 mm	Press-Fit	0.51 mm	0.02 in
Mill-Max Manufacturing Corp. 0307-0-15-80-30-27-04-0	-55 C	125 °C	0.76 Ám	30 Áin	0.64 mm	0.015 "	0.025 in	0.38 mm	0.059 in	1.5 mm	3.81 mm	0.15 in	Gold	Standard Tail	Beryllium Copper	0.293 in	7.44 mm	Press-Fit	0.51 mm	0.02 in
