1002-1571 Series

Catalog

SMC / STRAIGHT PLUG FEMALE CRIMP

Part	Body Material	Insertion Loss	Mating Cycles	Voltage Rating	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Center Contact Plating	Mounting Type	Number of Ports	Connector Style	Shield Termination	Housing Color	Connector Type	Cable Group	Cable Group	Center Contact Material	Frequency - Max [Max]	Impedance	Contact Termination	Fastening Type

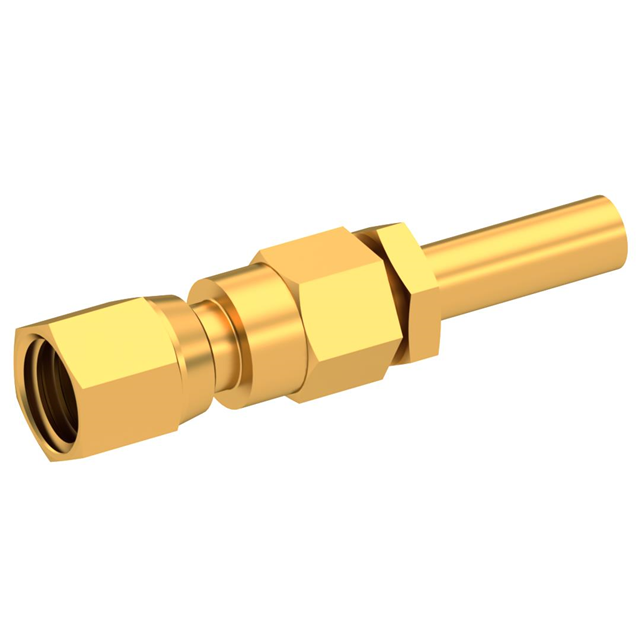

Radiall USA, Inc. 1002-1571-002	Brass	0.25 dB	500	250 V	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Gold	Gold	Free Hanging (In-Line)	1	SMC	Crimp	Gold	Female Socket Plug	196	RG-178	Beryllium Copper	10 GHz	50 Ohms	Crimp	Threaded

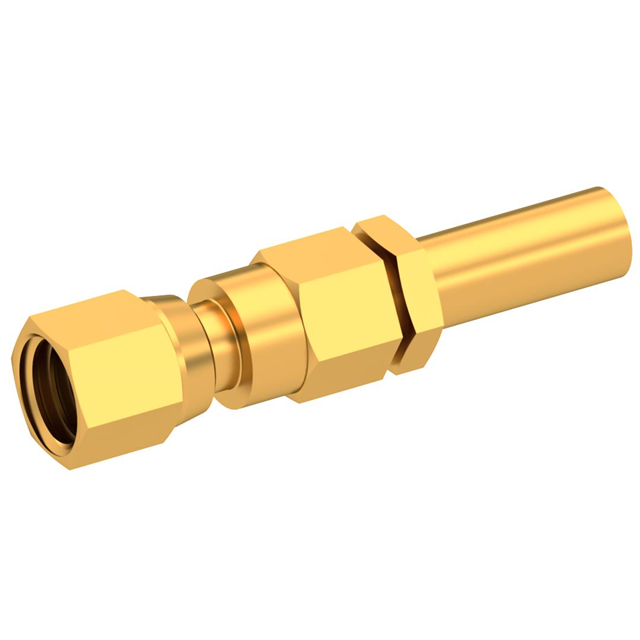

Radiall USA, Inc. 1002-1571-003	Brass	0.25 dB	500	335 V	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Gold	Gold	Free Hanging (In-Line)	1	SMC	Crimp	Gold	Female Socket Plug		RG-174 RG-179 RG-316	Beryllium Copper	10 GHz	50 Ohms	Crimp	Threaded

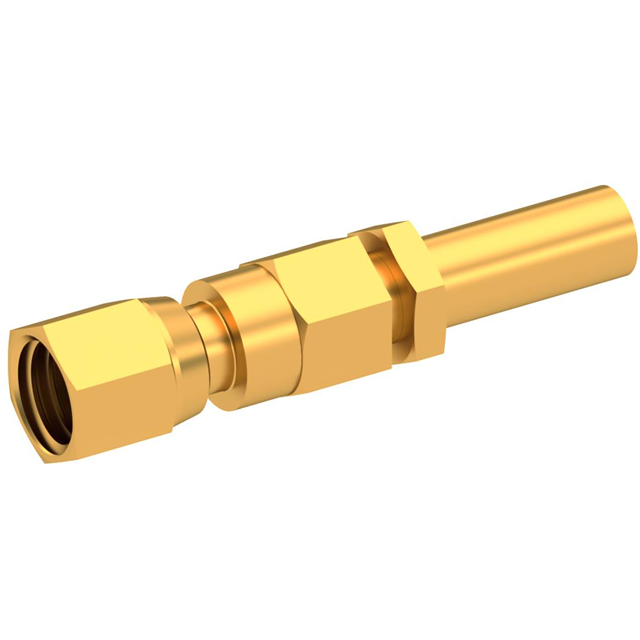

Radiall USA, Inc. 1002-1571-019	Brass	0.25 dB	500	335 V	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Gold	Gold	Free Hanging (In-Line)	1	SMC	Crimp	Gold	Female Socket Plug		RD-316 RG-316	Beryllium Copper	10 GHz	50 Ohms	Crimp	Threaded
