Q12RB6 Series

Catalog

PHOTOELECTRIC SENSORS WORLD-BEAM Q12 SERIES: POLARIZED RETRO; RANGE: 1 M; INPUT: 10-30 V DC; OUTPUT: DO (DARK OPERATE) BIPOLAR: 1 NPN; 1 PNP; 2 M (6.5 FT) CABLE

Part	Response Time	Ingress Protection	Sensing Method	Sensing Distance	Sensing Distance	Output Configuration	Connection Method	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Cable Length	Cable Length	Light Source
BANNER ENGINEERING Q12RB6LP	1.3 ms 700 µs 900 µs	IEC IP67 IP67 IEC	Polarized Retroreflective	39.37 in	1 m	NPN/PNP	Cable	10 VDC	30 VDC	55 °C	-20 ░C	78.74 "	2 m	Red LED
BANNER ENGINEERING Q12RB6RQ	1.3 ms 900 µs	IEC IP67 IP67 IEC	Through-Beam	78.74 in	2 m	NPN/PNP	Connector	10 VDC	30 VDC	55 °C	-20 ░C			Red LED
BANNER ENGINEERING Q12RB6FF50	1.3 ms 700 µs 900 µs	IEC IP67 IP67 IEC	Background Suppression	1.969 in	5 cm	NPN/PNP	Cable	10 VDC	30 VDC	55 °C	-20 ░C	78.74 "	2 m	Red LED
BANNER ENGINEERING Q12RB6LPQ	1.3 ms 700 µs 900 µs	IEC IP67 IP67 IEC	Polarized Retroreflective	39.37 in	1 m	NPN/PNP	Connector	10 VDC	30 VDC	55 °C	-20 ░C			Red LED

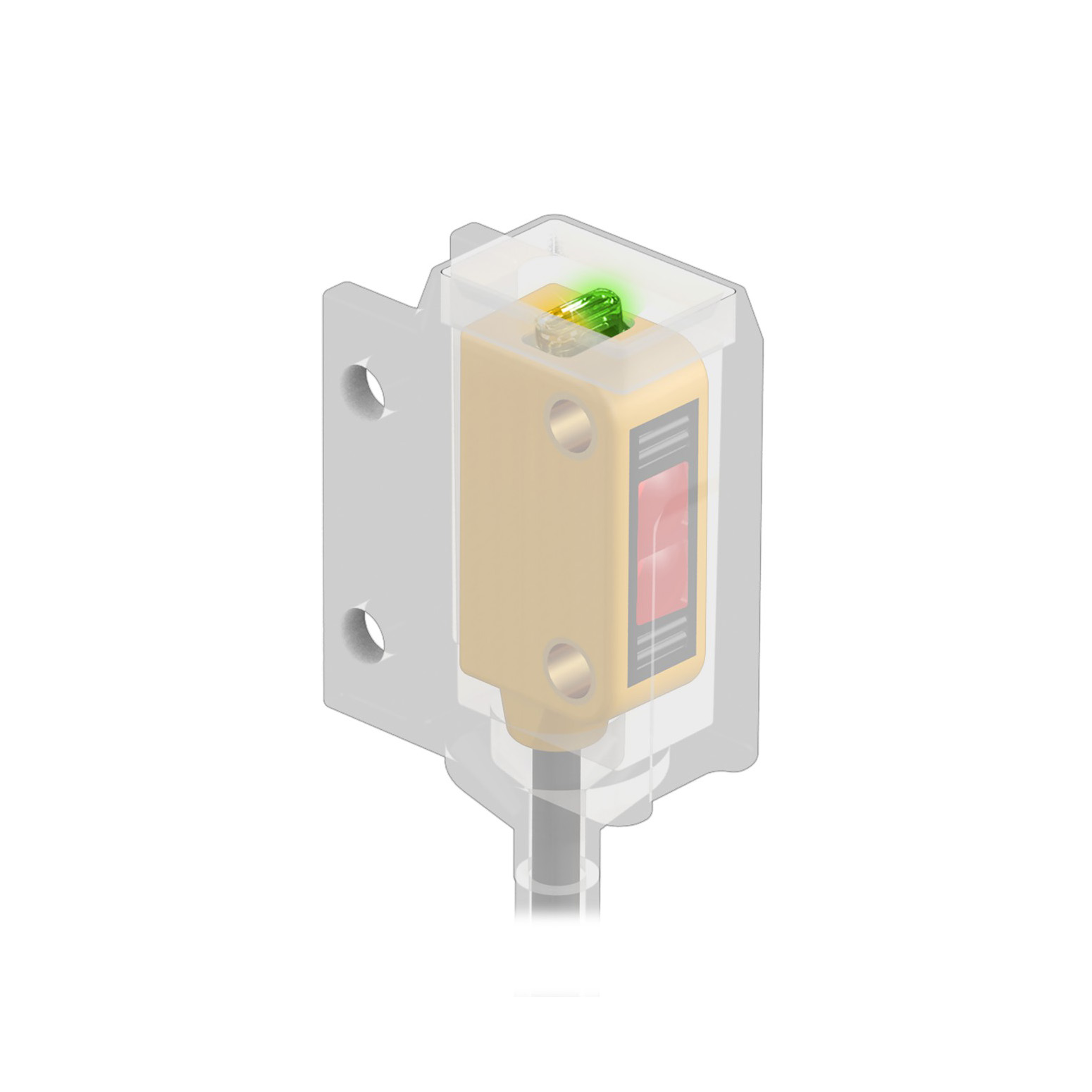

BANNER ENGINEERING Q12RB6FF50CR	1.3 ms 850 µs 900 µs	IEC IP67 IP67 IEC	Background Suppression	1.969 in	5 cm	NPN/PNP	Cable	10 VDC	30 VDC	55 °C	-20 ░C	78.74 "	2 m	Red (640nm)
BANNER ENGINEERING Q12RB6R	1.3 ms 900 µs	IEC IP67 IP67 IEC	Through-Beam	78.74 in	2 m	NPN/PNP	Cable	10 VDC	30 VDC	55 °C	-20 ░C	78.74 "	2 m	Red LED
BANNER ENGINEERING Q12RB6FF15	1.3 ms 700 µs 900 µs	IEC IP67 IP67 IEC	Background Suppression	0.591 in	15 mm	NPN/PNP	Cable	10 VDC	30 VDC	55 °C	-20 ░C	78.74 "	2 m	Red LED

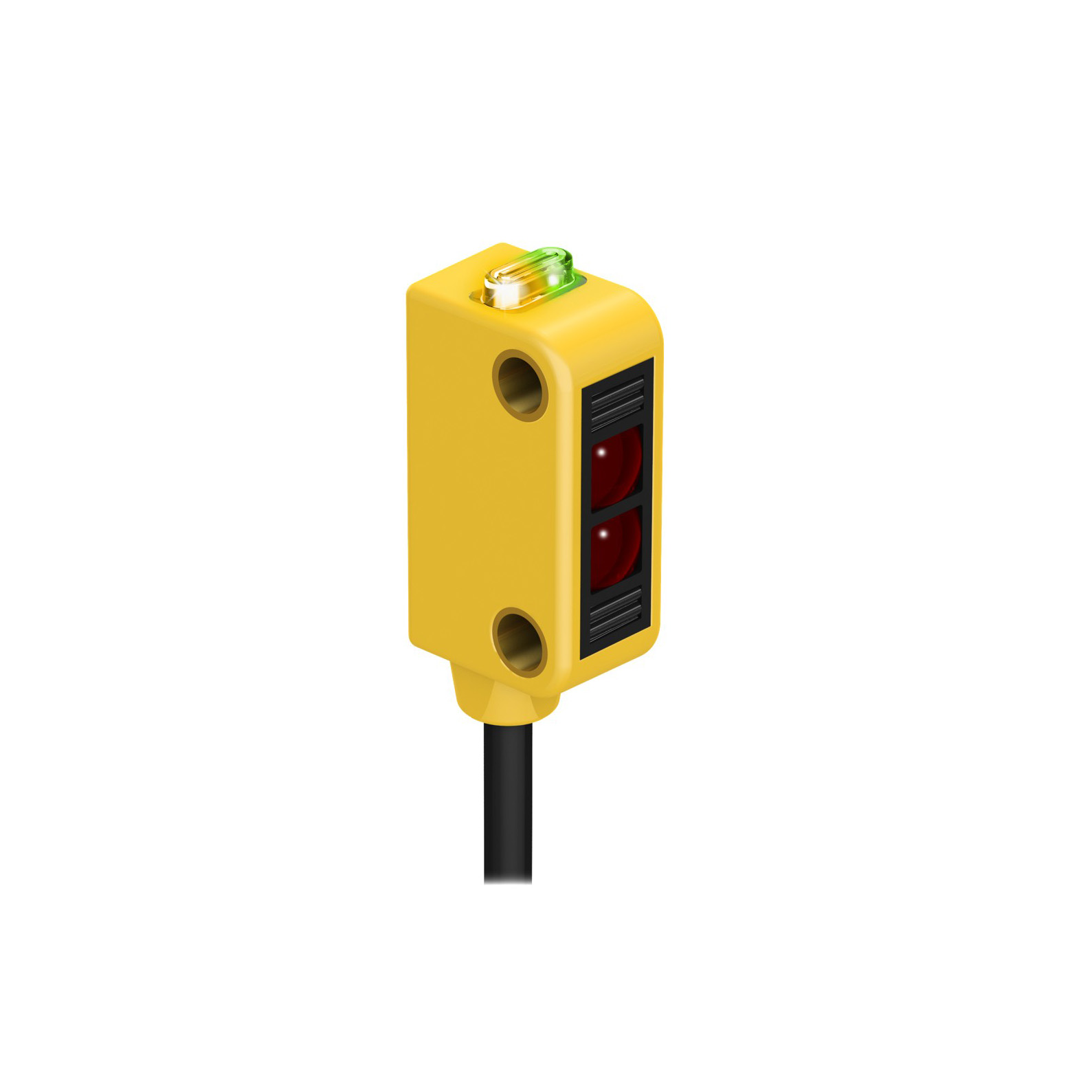

BANNER ENGINEERING Q12RB6LV	1.3 ms 700 µs 900 µs	IEC IP67 IP67 IEC	Retroreflective NonPolarized	4.9 ft	1.5 m	NPN/PNP	Cable	10 VDC	30 VDC	55 °C	-20 ░C	78.74 "	2 m	Red (640nm)
BANNER ENGINEERING Q12RB6FF30	1.3 ms 700 µs 900 µs	IEC IP67 IP67 IEC	Background Suppression	1.181 in	30 mm	NPN/PNP	Cable	10 VDC	30 VDC	55 °C	-20 ░C	78.74 "	2 m	Red LED
