1241.6621 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

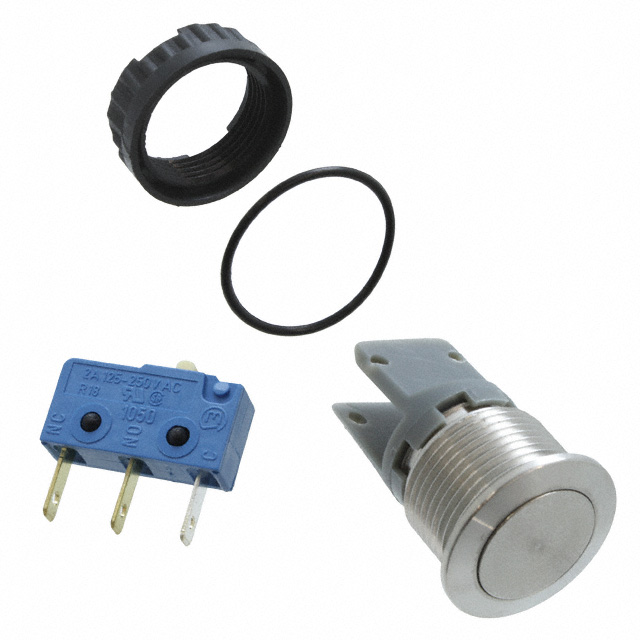

SWITCH PUSHBUTTON SPDT 100MA 30V
| Part | Electrical Life | Mechanical Life | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Ingress Protection | Actuator Marking | Voltage Rating - DC | Type | Color - Actuator/Cap | Termination Style | Switch Function | Actuator Type | Current Rating (Amps) | Mounting Type | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | SPDT | 85 °C | -25 °C | 19.1 mm | IP40 | No Marking | 30 V | Anti-Vandal | Silver | Quick Connect - 0.110" (2.8mm) | On-Mom | Button Flush Round | 100 mA | Panel Mount Front | |
 SCHURTER Inc. | 200000 Cycles | 1500000 Cycles | SPDT | 85 °C | -25 °C | 19.1 mm | IP40 | No Marking | Anti-Vandal | Silver | Quick Connect - 0.110" (2.8mm) | On-Mom | Button Flush Round | 5 A | Panel Mount Front | 125 V |
