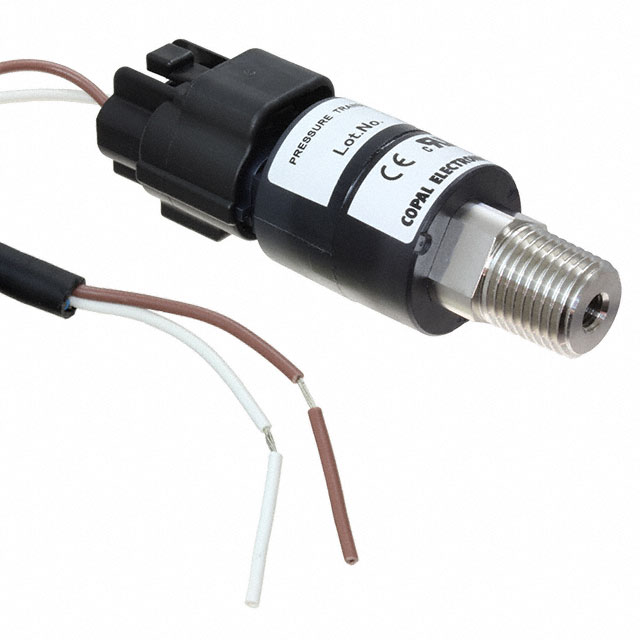

PA-758 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
PRESSURE TRANSDUCERS WITH AMP.
| Part | Output Type | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Operating Pressure | Operating Pressure | Output [Max] | Output [Min] | Features | Voltage - Supply | Port Style | Applications | Port Size | Termination Style | Maximum Pressure [Max] | Maximum Pressure [Max] | Pressure Type | Operating Pressure [Max] | Operating Pressure [Min] | Operating Pressure [Min] | Operating Pressure [Max] | Maximum Pressure | Maximum Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | Analog Current | -20 C | 70 °C | Cylinder | 100 kPa | 14.5 PSI | 20 mA | 4 mA | Temperature Compensated | 24 VDC | Threaded | Industrial Automation | Female - M5 | Cable | 200 kPa | 29.01 PSI | |||||||
Nidec Components Corporation | Analog Current | -20 C | 70 °C | Cylinder | 20 mA | 4 mA | Temperature Compensated | 24 VDC | Threaded | Industrial Automation | Female - M5 | Cable | 200 kPa | 29.01 PSI | Compound | 100 kPa | -1 bar | -14.5 PSI | 14.5 PSI | ||||
Nidec Components Corporation | Analog Current | -20 C | 70 °C | Cylinder | 3500 kPa | 507.63 PSI | 20 mA | 4 mA | Temperature Compensated | 24 VDC | Threaded | Industrial Automation | Female - M5 | Cable | 5000 kPa | 725.19 PSI | Gauge | ||||||
Nidec Components Corporation | Analog Current | -20 C | 70 °C | Cylinder | 3500 kPa | 507.63 PSI | 20 mA | 4 mA | Temperature Compensated | 24 VDC | Threaded | Industrial Automation | Female - M5 | Cable | 5000 kPa | 725.19 PSI | Gauge | ||||||
Nidec Components Corporation | Analog Current | -20 C | 70 °C | Cylinder | 10 bar | 145.04 PSI | 20 mA | 4 mA | Temperature Compensated | 24 VDC | Threaded | Industrial Automation | Female - M5 | Cable | 2000 kPa | 290.08 PSI | Gauge | ||||||
Nidec Components Corporation | Analog Current | -20 C | 70 °C | Cylinder | 100 kPa | 14.5 PSI | 20 mA | 4 mA | Temperature Compensated | 24 VDC | Threaded | Industrial Automation | Female - M5 | Cable | 200 kPa | 29.01 PSI | Vented Gauge | ||||||
Nidec Components Corporation | Analog Current | -20 C | 70 °C | Cylinder | 100 kPa | 14.5 PSI | 20 mA | 4 mA | Temperature Compensated | 24 VDC | Threaded | Industrial Automation | Female - M5 | Cable | 200 kPa | 29.01 PSI | Gauge | ||||||
Nidec Components Corporation | Analog Current | -20 C | 70 °C | Cylinder | 100 kPa | 14.5 PSI | 20 mA | 4 mA | Temperature Compensated | 24 VDC | Threaded | Industrial Automation | Female - M5 | Cable | 200 kPa | 29.01 PSI | |||||||
Nidec Components Corporation | Analog Current | -20 C | 70 °C | Cylinder | 20 mA | 4 mA | Temperature Compensated | 24 VDC | Threaded | Industrial Automation | Female - M5 | Cable | 200 kPa | 29.01 PSI | Compound | 100 kPa | -1 bar | -14.5 PSI | 14.5 PSI | ||||
Nidec Components Corporation | Analog Current | -20 C | 70 °C | Cylinder | 350 kPa | 50.76 PSI | 20 mA | 4 mA | Temperature Compensated | 24 VDC | Threaded | Industrial Automation | Female - M5 | Cable | Gauge | 700 kPa | 101.53 PSI |
