R14218 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

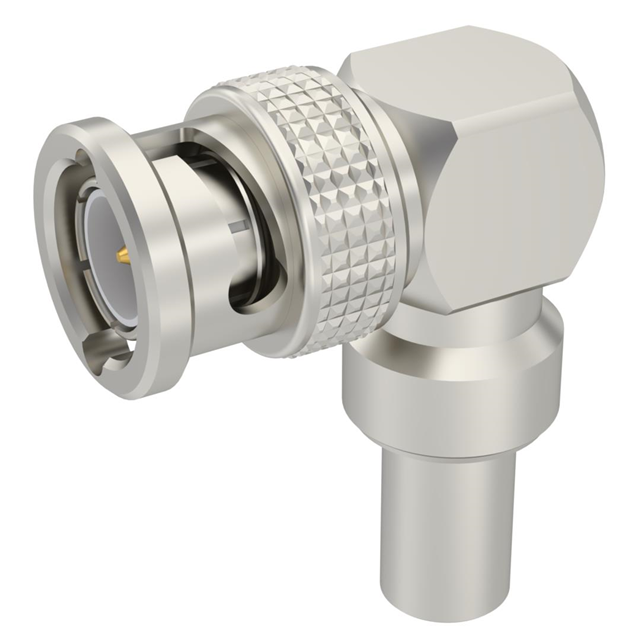

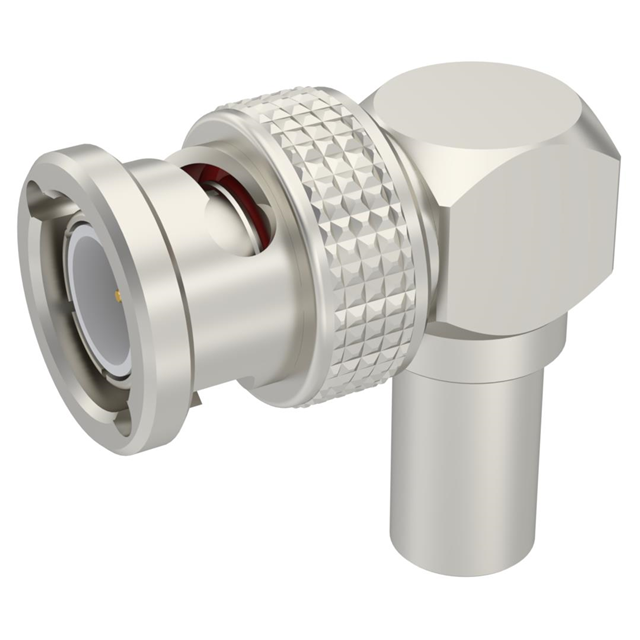

BNC / RIGHT ANGLE PLUG CRIMP TYP
| Part | Body Material | Body Finish | Voltage Rating | Center Contact Plating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Fastening Type | Mounting Type | Connector Type | Housing Color | Impedance | Contact Termination | Frequency - Max [Max] | Cable Group | Cable Group | Shield Termination | Connector Style | Number of Ports | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | Nickel | 500 V | Gold | Polypropylene (PP) | -35 °C | 70 °C | Brass | Bayonet Lock | Free Hanging (In-Line) Right Angle | Plug Male Pin | Silver | 75 Ohms | Crimp | 1.5 GHz | RG-59 | 62 | Crimp | BNC | 1 | |
 Radiall USA, Inc. | Brass | Nickel | 500 V | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Beryllium Copper | Bayonet Lock | Free Hanging (In-Line) Right Angle | Plug Male Pin | Silver | 75 Ohms | Crimp | 1.5 GHz | RG-59 | 62 | Crimp | BNC | 1 | 500 |
 Radiall USA, Inc. | Brass | Nickel | 500 V | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Beryllium Copper | Bayonet Lock | Free Hanging (In-Line) Right Angle | Plug Male Pin | Silver | 75 Ohms | Crimp | 1.5 GHz | RG-59 | 62 | Crimp | BNC | 1 | 500 |
