3259 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

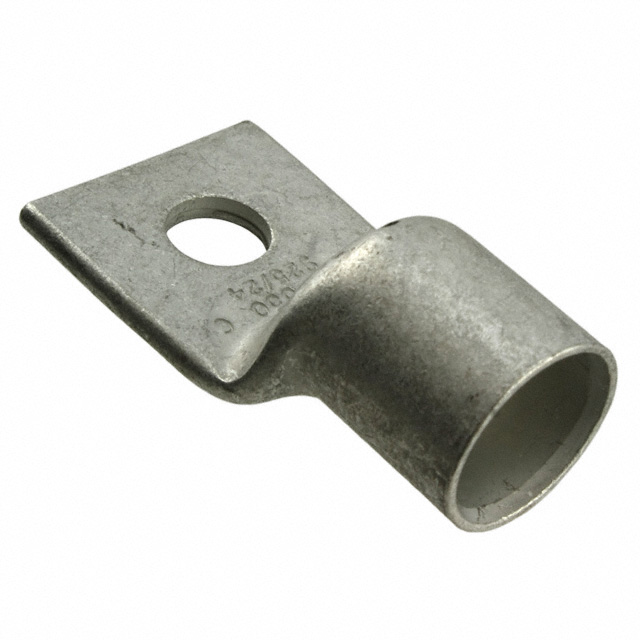

CONN TERM RECT 350 MCM #1/2
| Part | Terminal Style | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Mounting Type | Contact Finish | Termination | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Width - Outer Edges [y] | Width - Outer Edges [y] | Tab Thickness | Tab Thickness | Stud/Tab Size | Terminal Type | Wire Gauge | Contact Material | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Length - Overall [x] | Length - Overall [x] | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Single Stud Hole | 13.08 mm | 0.515 in | Free Hanging (In-Line) | Tin | Barrel Crimp | 1.026 in | 26.06 mm | 38.35 mm | 1.51 in | 0.17 " | 4.32 mm | 1/2 Stud | Standard | 350 MCM (kcmil) | Copper | 0.819 in | 20.8 mm | 2.79 in | 70.87 mm | Non-Insulated |
