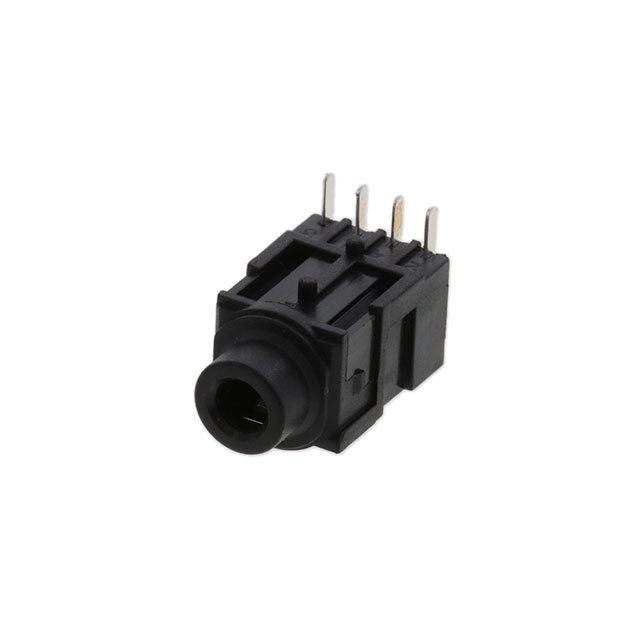

ASJ-171 Series
Manufacturer: Adam Tech
Beta
⌘K
AUDIO JACK, WATERPROOF
| Part | Housing Material | Body Color | Current Rating (Amps) | Contact Material | Voltage - Rated | Connector Type | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Features | Shielding | Internal Switch(s) | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Termination | Actual Diameter [diameter] | Actual Diameter [diameter] | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Mounting Type | Signal Lines |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Polybutylene Terephthalate (PBT) | Black | 0.5 A | Phosphor Bronze | 30 V | Phone Jack | 4 | 4 | Board Guide Cover | Unshielded | Female | -20 ░C | 70 °C | Black | Solder | 0.142 in | 3.6 mm | 0.125 in | 3.5 mm | 0.141 in | Right Angle Through Hole | Stereo (4 Conductor TRRS) |
